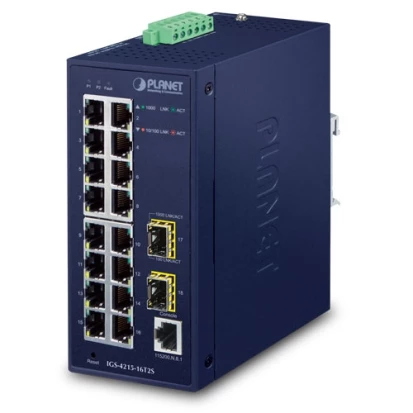

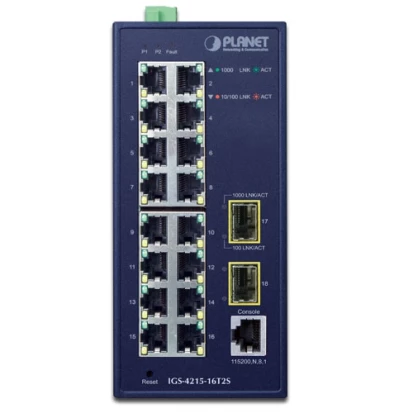

IGS-4215-16T2S

IGS-4215-16T2S

Planet
SKU: 57121400
L2 Managed Ethernet Switch with 16x10/100/1000 Base T, 2x100/1000X SFP ports, ERPS Ring, IEEE 1588, Modbus TCP, Cybersecurity features, Dual 12-48VDC -40..75C Operating Temperature
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
2
Switch Properties
MAC Table Size
8000
Packet Buffer Size
4100 kBit
Jumbo Frame Size
10 kB
Max. Number of VLANs
256
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, SNTP, ARP, DHCP Option 66/67/82, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
66 mm
Depth
107 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 50121-4, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.81 kg
Gross Weight
1.2 kg
