TSN-5225-4T

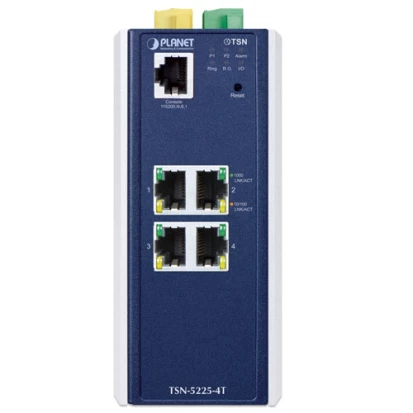

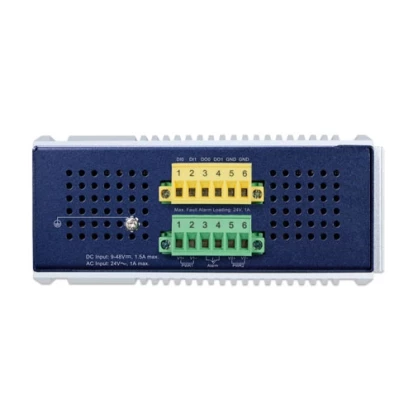

TSN-5225-4T

Planet
SKU: 57895400
L2 Managed Ethernet Switch IP30 4-Port 10/100/1000BASE-T, 1xCOM, 2xDI, 2xDO, 9..48VDC -40..75C Operating Temperature
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
8000
Packet Buffer Size
32000 kBit
Jumbo Frame Size
10 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, NTP, GVRP, CoS, ARP, IEEE 1588 PTP V2 (software based), IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3ah OAM for Link-Fault Management
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
9..48 V
Construction
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
60 mm
Depth
135 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
8000
Packet Buffer Size
32000 kBit
Jumbo Frame Size
10 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, NTP, GVRP, CoS, ARP, IEEE 1588 PTP V2 (software based), IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3ah OAM for Link-Fault Management
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
9..48 V
Construction
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
60 mm
Depth
135 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
8000
Packet Buffer Size
32000 kBit
Jumbo Frame Size
10 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, NTP, GVRP, CoS, ARP, IEEE 1588 PTP V2 (software based), IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3ah OAM for Link-Fault Management
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
9..48 V
Construction
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
60 mm
Depth
135 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
8000
Packet Buffer Size
32000 kBit
Jumbo Frame Size
10 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, NTP, GVRP, CoS, ARP, IEEE 1588 PTP V2 (software based), IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3ah OAM for Link-Fault Management
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
9..48 V
Construction
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
60 mm
Depth
135 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg

Documentation
TSN-5225-4T-Datasheet.pdf TSN-5225-4T-User-manual.pdf
Documentation
TSN-5225-4T-Datasheet.pdf TSN-5225-4T-User-manual.pdf
Documentation
TSN-5225-4T-Datasheet.pdf TSN-5225-4T-User-manual.pdf
Documentation
TSN-5225-4T-Datasheet.pdf TSN-5225-4T-User-manual.pdf
