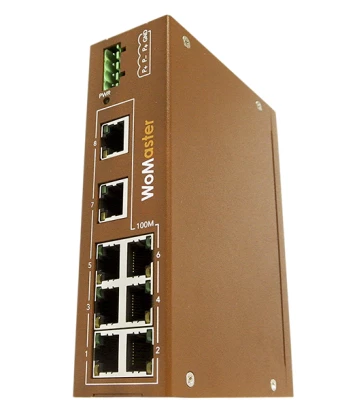

DS108H
WoMaster
SKU: 57927200
Industrial Ethernet Switch, IP30, 8x10/100Base-TX, 10..36VDC, -40..75 C Operating Temperature
Price on request
Available
Available
Ethernet
10/100 Mbit/s
8
Switch Properties
MAC Table Size
1000
Packet Buffer Size
448 kBit
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
10..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
108 mm
Depth
88 mm
Height
64 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
0-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Dimensions
Net Weight
0.5 kg
Gross Weight
0.65 kg
