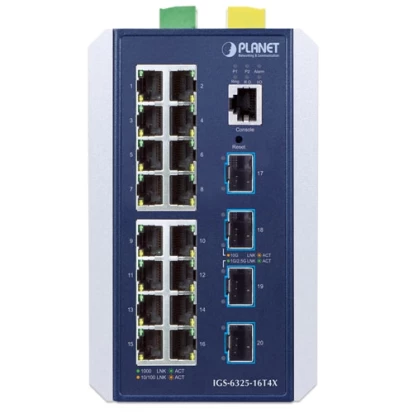

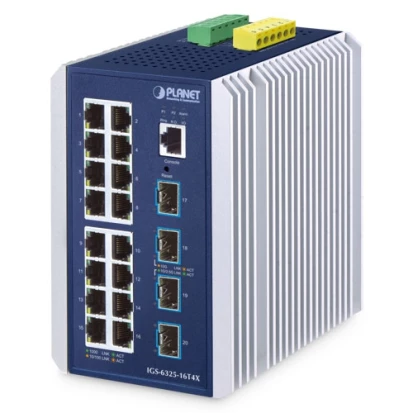

IGS-6325-16T4X
Planet
SKU: 57883800
L3 Industrial Managed Switch IP30 16-Port 10/100/1000BASE-T, 4-Port 10GBASE-SR/LR SFP+, 1xCOM, SDRAM 512Mbytes, Flash Memory 64Mbytes, 2xDI, 2xDO, 9..48 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
16
10 Gbit/s SFP+ Ports
4
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, VLAN, NTP, GVRP, LACP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3ah OAM for Link-Fault Management

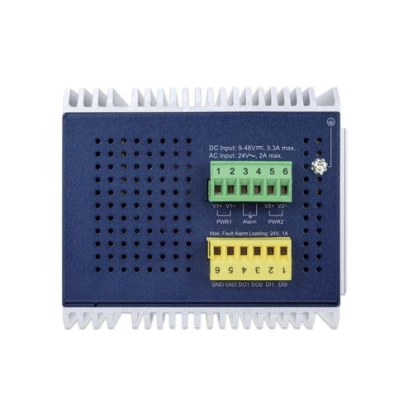

System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
96 mm
Depth
107 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.5 kg
Gross Weight
2 kg
Ethernet
10/100/1000 Mbit/s
16
10 Gbit/s SFP+ Ports
4
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, VLAN, NTP, GVRP, LACP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
96 mm
Depth
107 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.5 kg
Gross Weight
2 kg
Ethernet
10/100/1000 Mbit/s
16
10 Gbit/s SFP+ Ports
4
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, VLAN, NTP, GVRP, LACP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
96 mm
Depth
107 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.5 kg
Gross Weight
2 kg
Ethernet
10/100/1000 Mbit/s
16
10 Gbit/s SFP+ Ports
4
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, VLAN, NTP, GVRP, LACP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage DC
9..48 V
Dimensions and weight
Width
96 mm
Depth
107 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.5 kg
Gross Weight
2 kg
