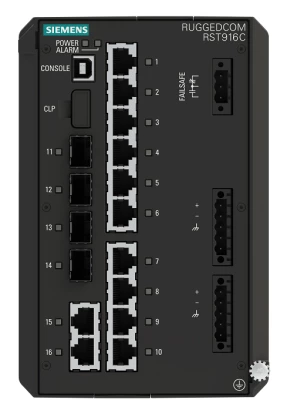

RUGGEDCOM-RST916C
Siemens AG
SKU: 57834700
RUGGEDCOM RST916C 16 ports Industrial Managed Layer 2 Ethernet Switch, 12x100/1000Base-T RJ45 ports, up to 4x10GBase-X /1000Base-X SFP+ ports, USB console port, Optional 88-300 VDC/85-264 VAC or 10..60 VDC, Wide Temp. -40..85 C, EN 50155, EN 50121-4
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
12
10 Gbit/s SFP+ Ports
4
Switch Properties
MAC Table Size
16384
Packet Buffer Size
2048 kBit
Max. Number of VLANs
255
IGMP Groups
1024
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Telnet, SNTP Client, SNTP, GVRP, RMON, TFTP, CoS, GMRP, NTP Client, Private MIB, IGMP Snooping v1/v2/v3, IGMP Querier, SFTP
Reservation protocols
MSTP, RSTP, STP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
System Power Input
Input Voltage DC
10..60 V
Input Voltage AC
85..264 V
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
116 mm
Depth
177 mm
Height
163 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
EMI
EN 55022, FCC Part 15 Subpart B Class A
Power Automation
IEC 61850-3
Dimensions
Net Weight
3.75 kg
Gross Weight
4.75 kg
