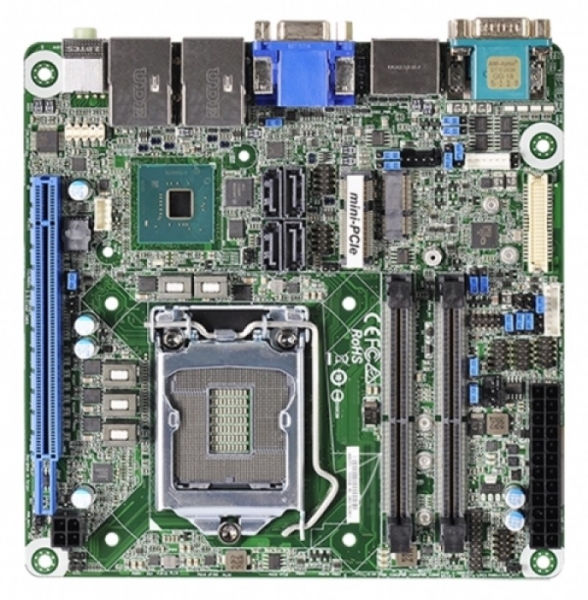

WADE-8211-Q370

WADE-8211-Q370

Portwell
SKU: 08932500
Mini-ITX SBC, support Intel 8th Gen. Core i7/i5/i3/Pentium, Intel Q370 PCH, DDR4, VGA/2xDP/LVDS, 2xGbE LAN, 5xCOM, 4xUSB 2.0, 4xUSB 3.0, 4xSATA III, M.2 Key-M, M.2 Key-E, PCIe x16, MiniPCIe, Audio, 0..60C
Price on request
Available
Available

System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, VGA, 2xDisplayPort
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
5
RS-232
3
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC887
Drive interfaces
M.2
1
Extension Slots
PCI Express x16
1
M.2
2
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, 4xSATA 3, 4xUSB 2.0, 24-pin ATX, 4-pin ATX
Connectors

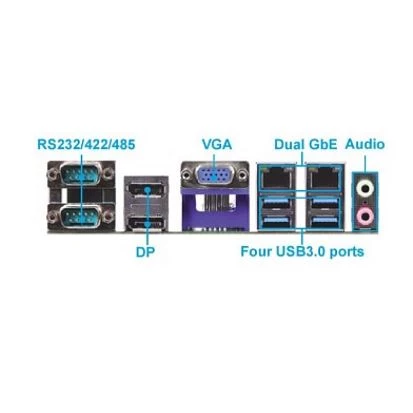

2xDB9, DB15 VGA, 2xRJ45, 4xUSB, Line In, Line Out, 2xDisplayPort
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
