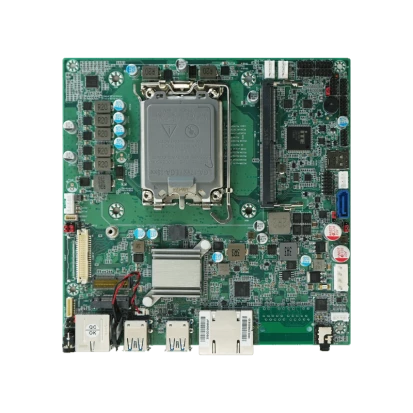

ITX-i93QI-H610

ITX-i93QI-H610

Arbor
SKU: 57985000
Mini-ITX Motherboard, Intel 12th Gen Core i9/i7/i5/i3 CPU, H610 Chipset, Up to 32GB DDR5 RAM, HDMI/DP, LVDS/eDP, 2xGbE LAN, 4xUSB 3.2, 6xCOM Headers, 4xUSB 2.0 Headers, GPIO, 1xSATA, 1xM.2 Key-M SATA, 1xM.2 Key-E, 1xMiniPCIe, Audio, 19-24VDC-in
Price on request
Available
Available
Cable Set 1
Price with VAT
Price on request
Cable Set 2
Price on request
Cable Set 3
Price on request
Cable Set 4
Price on request
Cable Set 1
Price with VAT
Price on request
Cable Set 2
Price on request
Cable Set 3
Price on request
Cable Set 4
Price on request
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Socket
LGA1700
Chipset
Chipset
Intel H610
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Interfaces
DisplayPort, LVDS, HDMI
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
SIM Card slots
Yes, 1
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
