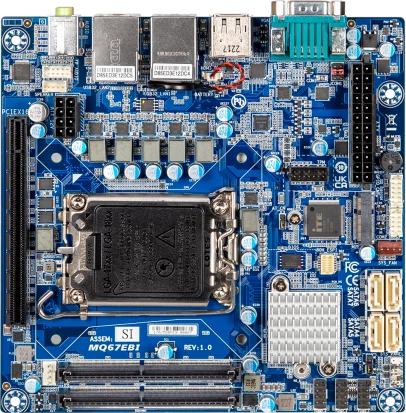

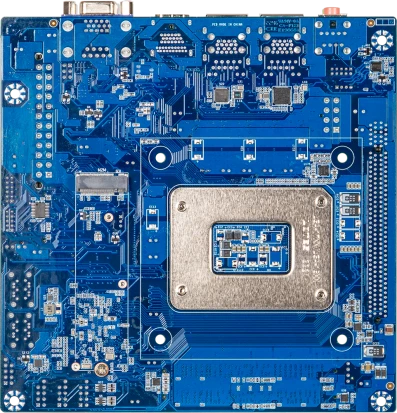

mITX-Q67EB
GIGAIPC
SKU: 57829700
Mini-ITX Motherboard, Intel 12/13th Gen Core i9/i7/i5/i3/Pentium/Celeron CPU, Q670E Chipset, Up to 64GB DDR4 RAM, HDMI, DP, VGA, 1x2.5GbE LAN, 1xGbE LAN, 2xCOM, 4xUSB 3.2, 6xUSB 2.0, 4xSATA, 2xM.2, 1xPCIe x16, 1x8-bit GPIO, Audio, TPM header, 0..60
Price on request
Available on order
Available on order
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
10
USB 2.0
6
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
4
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors

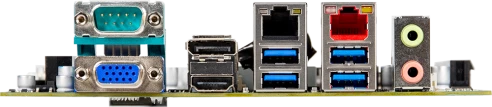

24pin ATX, DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, 8-pin ATX
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
