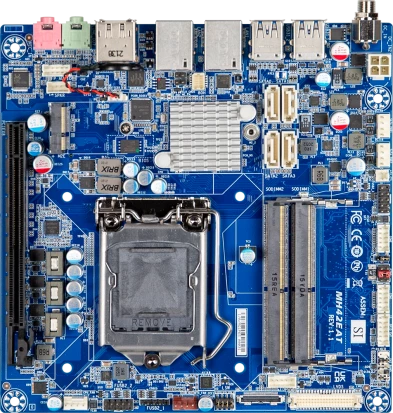

iTXL-H42EA
GIGAIPC
SKU: 57832700
Mini-ITX Embedded Motherboard, LGA1200, Intel 10th Gen Core i9/i7/i5/i3/Pentium/Celeron CPU, H420E, Up to 64GB DDR4 RAM, HDMI/LVDS/DP/eDP, 2xGbE LAN, 4xSATA, 2xCOM, 4xUSB 3.2, 5xUSB 2.0 header, 2xM.2, 1xPCIe x16, 1xGPIO, Audio, 12-24VDC-in, 0..+60C
Price on request
Available on order
Available on order
System Architecture
Form Factor
Thin Mini-ITX
CPU
СPU Generation/Family
Comet Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1200
Chipset
Chipset
Intel H420E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
DisplayPort, LVDS, HDMI, eDP
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
9
USB 2.0
5
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
4
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.48 kg
Gross Weight
0.7 kg
