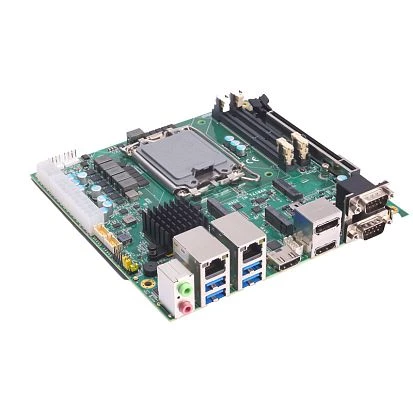

MANO566-Q670E-S

MANO566-Q670E-S

AXIOMTEK
SKU: 10726400
LGA1700 Mini ITX SBC with support 12th gen Intel Core CPU, Intel Q670E, DDR4, 2xHDMI, DP, 2x2.5GbE LAN, 4xCOM, 4xUSB 3.2, 4xUSB 2.0, DIO, Audio, 2xSATA, 1xPCIe x16, M.2 Key B 3052/3042, M.2 Key E 2230, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DisplayPort, 2xHDMI, eDP
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
2
RAID Levels
0, 1
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
Connectors
Internal Ports
2xSATA 3, 10-pin DIO, TPM, 24-pin ATX, 2x14-pin RS-232/422/485, 4x4-pin USB 2.0, 8-pin ATX, 40-pin eDP
Connectors

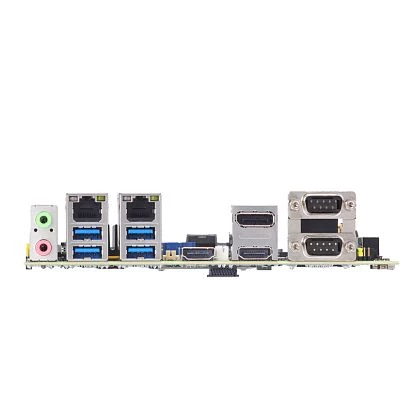

2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Gross Weight
0.67 kg
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DisplayPort, 2xHDMI, eDP
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
2
RAID Levels
0, 1
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
Connectors
Internal Ports
2xSATA 3, 10-pin DIO, TPM, 24-pin ATX, 2x14-pin RS-232/422/485, 4x4-pin USB 2.0, 8-pin ATX, 40-pin eDP
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Gross Weight
0.67 kg
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DisplayPort, 2xHDMI, eDP
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
2
RAID Levels
0, 1
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
Connectors
Internal Ports
2xSATA 3, 10-pin DIO, TPM, 24-pin ATX, 2x14-pin RS-232/422/485, 4x4-pin USB 2.0, 8-pin ATX, 40-pin eDP
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Gross Weight
0.67 kg
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DisplayPort, 2xHDMI, eDP
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
SATA 3
2
RAID Levels
0, 1
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
Connectors
Internal Ports
2xSATA 3, 10-pin DIO, TPM, 24-pin ATX, 2x14-pin RS-232/422/485, 4x4-pin USB 2.0, 8-pin ATX, 40-pin eDP
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Gross Weight
0.67 kg
Documentation
MANO566.pdf
Documentation
MANO566.pdf
Documentation
MANO566.pdf
Documentation
MANO566.pdf
