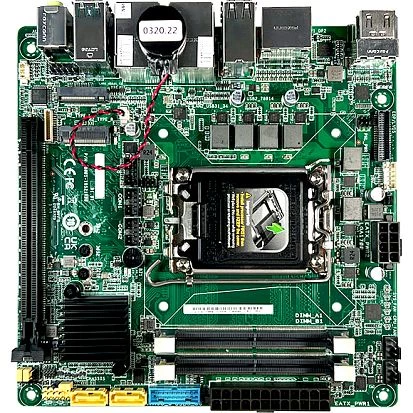

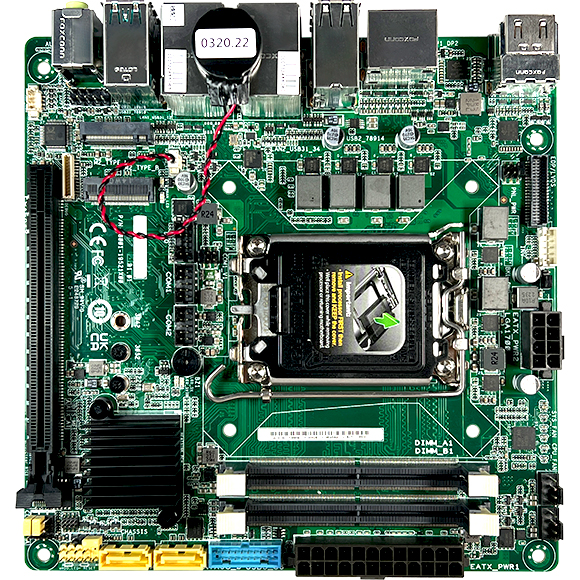

NEX-618
NEXCOM
SKU: 10648500
Mini-ITX, LGA1700 socket for 12/13th Gen Intel Core, Intel Q670E, DDR5, 2xHDMI, 2xDP, LVDS, eDP, 2xGbE LAN, 2xCOM, 8xUSB 3.2, 4xUSB 2.0, 2xSATA 3.0, PCIe x16, PCIe x1, M.2 2280 Key M, M.2 3042/3052 Key B
Price on request
Available on order
Available on order
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 2xHDMI, 2xDisplayPort, eDP
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
12
USB 2.0
4
USB v3.x
8
Drive interfaces
SATA 3
2
M.2
1
Extension Slots
Total
2
PCI Express x16
1
M.2
1
M.2 Form Factor
3052 B, 3042 B
Connectors
Internal Ports
2xSATA 3, 4-pin (12V DC CPU), 24-pin ATX
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, Mic In, Line In, Line Out, 2xDisplayPort
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
