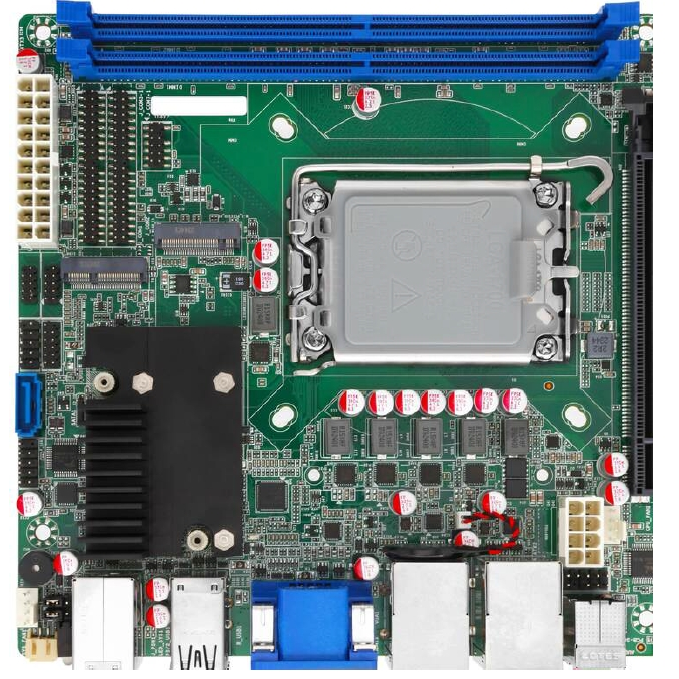

MF-H610S

MF-H610S

SKU: 80100200
Mini-ITX Mainboard, LGA1700, Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU, Up to 64GB DDR4 RAM, H610 Chipset, HDMI, VGA, 2xGbE LAN, 4xUSB 3.0, 8xUSB 2.0, 10xCOM, 8-bit GPIO, 1xPS/2, 1xSATA3, 1xM.2 Key-M, 1xM.2 Key-E, 1xPCIe x16, Audio
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Socket
LGA1700
Chipset
Chipset
Intel H610
Memory
Form-factor
DDR4
Socket Type
2xDIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
10
RS-232
10
USB Total
12
USB 2.0
8
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xUSB 2.0, 3x10-pin RS-232, 7x10-pin RS-232, GPIO
Connectors
20-pin ATX, DB15 VGA, HDMI, 1xPS/2, 2xRJ45 Ethernet, 10xUSB, Mic In, Line Out, 8-pin ATX
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.55 kg
Gross Weight
0.8 kg
