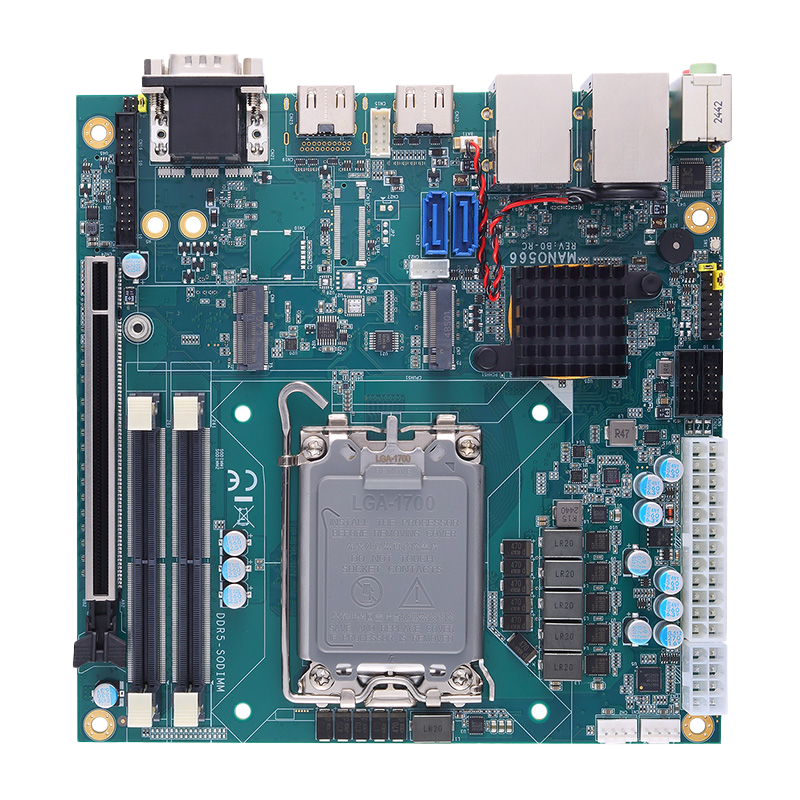

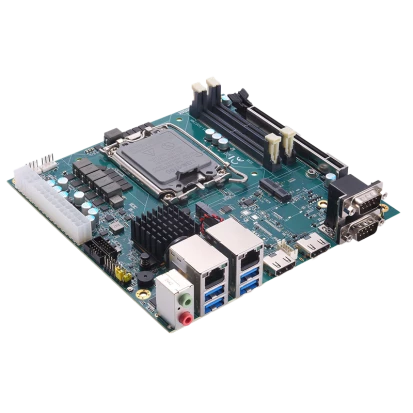

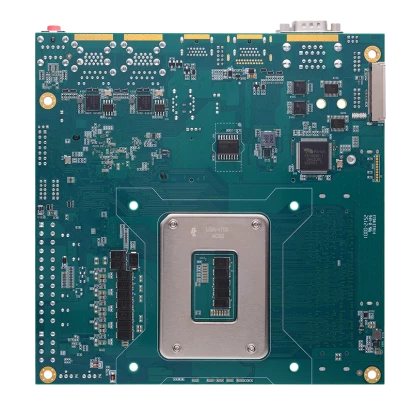

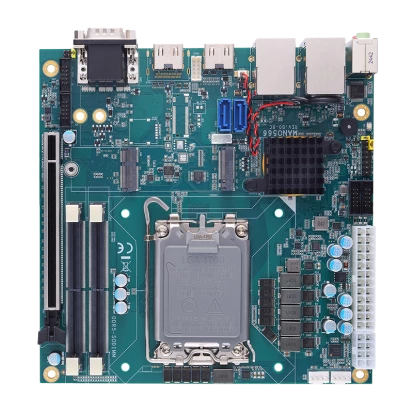

MANO566-Q670E-S5
AXIOMTEK
SKU: 80268800
LGA1700 Mini ITX SBC support 14/13/12th Gen Intel Core CPU, Intel Q670E, DDR5, 2xHDMI, 2x2.5GbE LAN, 4xCOM, 4xUSB 3.2, 4xUSB 2.0, DIO, Audio, 2xSATA, M.2 Key E 2230, 1xPCIe x16, 24+8-pin ATX connector
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1700
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
2xHDMI, eDP
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Internal Ports
2xSATA 3, 10-pin DIO, TPM, 24-pin ATX, 2x14-pin RS-232/422/485, 4x4-pin USB 2.0, 8-pin ATX, 40-pin eDP
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out
Software
Operating System Compatibility
Linux OS, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.67 kg
Gross Weight
0.67 kg
