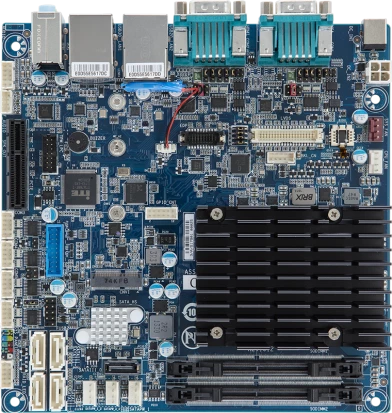

mITX-4125A
GIGAIPC
SKU: 57344800
Mini-ITX Motherboard, Intel Celeron J4125 2.0GHz SoC, Up to 8GB DDR4 RAM, HDMI, VGA, LVDS/eDP, 2xGbE LAN, 6xCOM, 4xUSB 3.2, 4xUSB 2.0, 5xSATA, 2xM.2, 1xPCIe x4, 1x8-bit GPIO, Audio, TPM header, 12VDC-in, 0..60
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
Construction
Type
Fanless
CPU
СPU Generation/Family
Gemini Lake
Processor Installed
Intel Celeron J4105
Socket
CPU onboard
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA, eDP
Ethernet
Controller Type
Realtek RTL8111HS
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
SATA 3
5
RAID Levels
0, 1, 10
M.2
1
Extension Slots
Total
3
PCI Express x4
1
M.2
2
M.2 Form Factor
2242 M, 2280 M, 2230 E, 2260 M
Connectors
Connectors

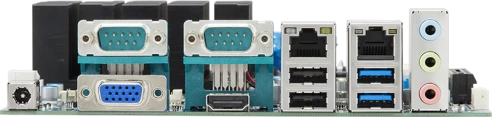

4-pin ATX, 2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), DC Input
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
