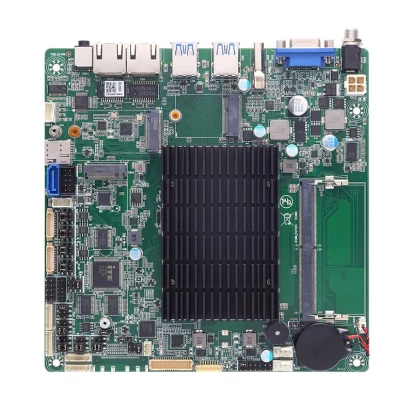

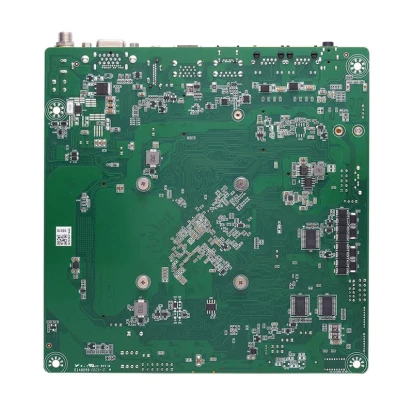

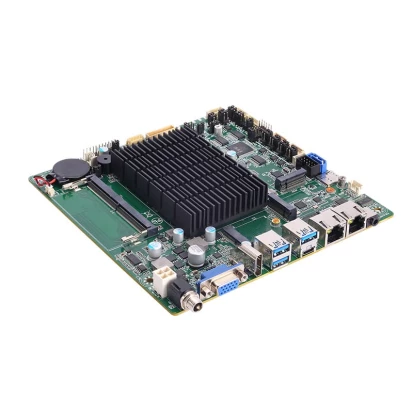

MANO330-N97-S
AXIOMTEK
SKU: 80337200
Thin Mini ITX SBC, Intel Alder Lake N97 CPU, Up to 32GB DDR5 RAM, HDMI, VGA, LVDS, 1x2.5GbE LAN, 1xGbE LAN, 6xCOM Int., 3xUSB 3.2, 1xUSB-C, 2xUSB 2.0 Int., 8-bit GPIO Int., 1xSATA3, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 12-24VDC-in
Price on request
Available
Available
System Architecture
Form Factor
Thin Mini-ITX
Construction
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA, Type C DP
Ethernet
Controller Type
Realtek RTL8111H, Realtek RTL8125BG
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
6
RS-232
6
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
SIM Card slots
Yes, 1, Nano SIM
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input, USB type C
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
5-95%
Dimensions
Net Weight
0.67 kg
Gross Weight
0.67 kg
