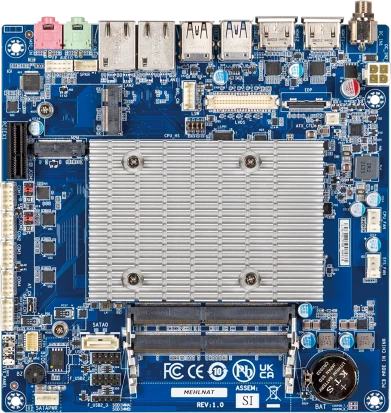

iTXL-6412A
GIGAIPC
SKU: 57832200
Mini-ITX Embedded Motherboard, Intel Celeron J6412 2GHz CPU, Up to 32GB DDR4 RAM, 2xHDMI/LVDS/eDP, 2xGbE LAN, 1xSATA, 4xCOM, 3xUSB 3.2, 1xUSB 2.0, 5xUSB 2.0 header, 2xM.2, 1x8-bit GPIO, Audio, 12-24VDC-in, 0..+60C
Price on request
Available on order
Available on order
System Architecture
Form Factor
Thin Mini-ITX
Construction
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
LVDS, 2xHDMI, eDP
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
9
USB 2.0
6
USB v3.x
3
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
PCI Express x1
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.48 kg
Gross Weight
0.7 kg
