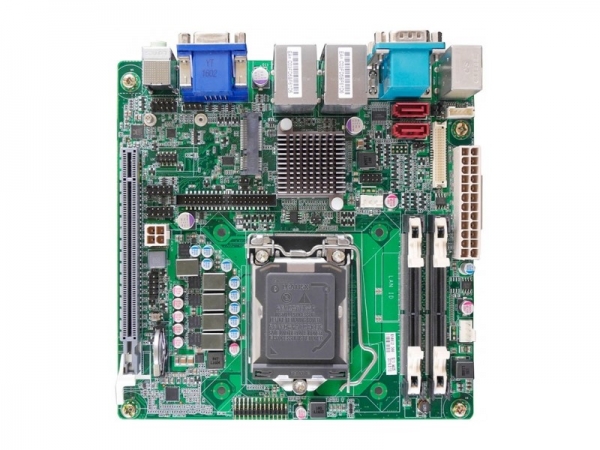

WADE-8210-H110

WADE-8210-H110

Portwell
SKU: 56554200
Embedded Board Mini-ITX Intel Core i3/ i5/ i7 (Supports Intel 6th Skylake-S) LGA-1151 chipset H110, up to 32GB DDR4 SoDIMM, VGA/HMDI/DP, 2xGb LAN, 4xSATA, 6xCOM, 4xUSB 3.0, 4xUSB 2.0, 1xPCI Express x16, 1xMini-PCIe, ATX
Price on request
Available
Available

System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek 8111F
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
6
USB 2.0
4
USB v3.x
4
Extension Slots
Total
2
PCI Express x16
1
Mini-PCI
1
Connectors
Internal Ports
2xSATA 3, 4-pin (12V DC CPU), 24-pin ATX
Connectors
2xDB9, DB15 VGA, HDMI, PS/2 Mouse, PS/2 Keyboard, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out
Dimensions and weight
Width
170 mm
Length
170 mm
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
