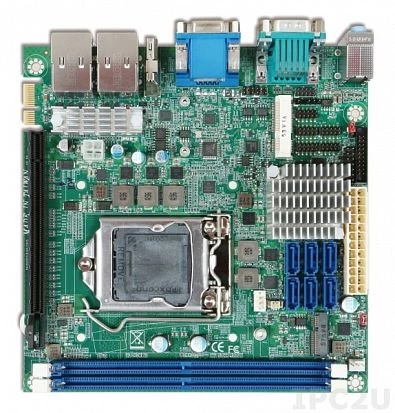

WADE-8017
Portwell
SKU: 06994700
Embedded Board Mini-ITX Intel Core i3/ i5/ i7 (Supports Intel 6th Skylake-S) LGA-1151 chipset Q170, up to 32GB DDR4 VGA/HMDI/DP, 2xGb LAN, 6xSATA, 6xCOM, 4xUSB 3.0, 2xUSB 2.0, 1xPCI Express x16, 1xMini-PCIe, 1xM.2, ATX
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
CPU Support Type
Core i3, Core i5, Core i7
Socket
LGA1151
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB 2.0
2
USB v3.x
4
Extension Slots
PCI Express x16
1
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
24-pin ATX, 2x4-pin USB 2.0, 6xSATA 3
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), Display Port
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
