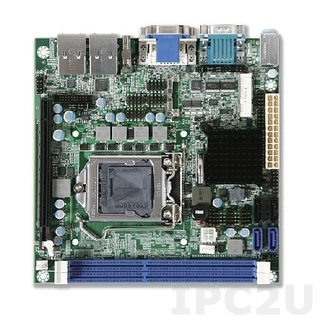

WADE-8013
Portwell
SKU: 05984600
Mini-ITX Q77 PCH chipset Intel Dual/Quad Core i3/ i5/ i7 NextGen LGA-1155 CPU Card with Dual Display VGA/DVI/HMDI, DDR3, 2xGb LAN, 4xSATA, 6xCOM, 8xUSB, 1xPCI Express x16, 1xMini-PCIe, AMT 8.0
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
CPU Support Type
Core i3, Core i5, Core i7
Socket
LGA1155
Number of CPU
1
Chipset
Chipset
Intel Q77
Memory
Form-factor
DDR3
Socket Type
2xDIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, HDMI, VGA
Ethernet
Controller Type
Intel 82574L 10/100/1000 Mbps, Intel 82583V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
10
USB 2.0
6
USB v3.x
4
Digital Input-Output
Channels of DIO
16
Audio
Audio Controller
Realtek ALC886-GR
Extension Slots
Total
2
PCI Express x16
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI-D, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic)
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.7 kg
Gross Weight
0.71 kg
