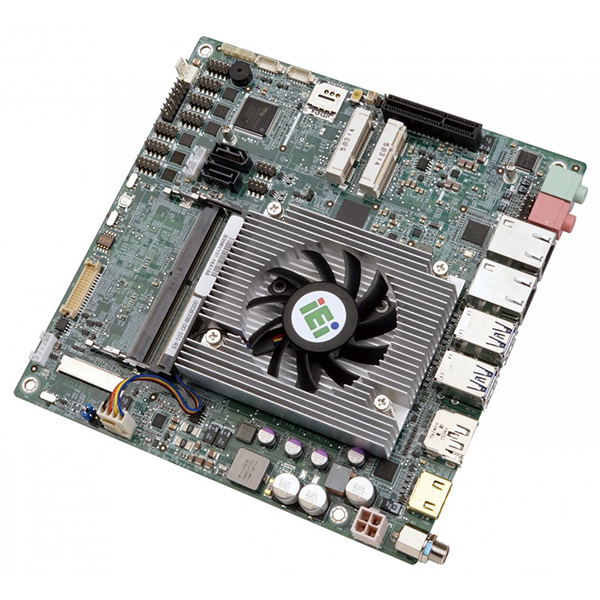

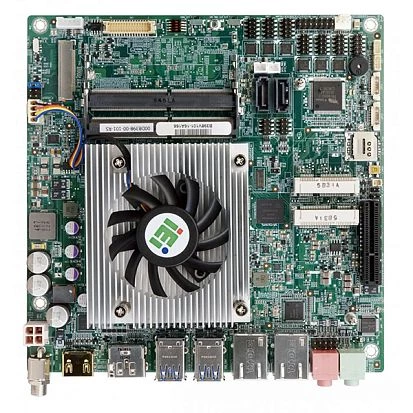

tKINO-ULT3-i3

tKINO-ULT3-i3

IEI
SKU: 07552300
Mini-ITX Intel Core i3-6100U up to 2.3GHz CPU Card with DDR4, 2xHDMI/DP/LVDS/eDP, 2xGB LAN, 4xSOM, 4xUSB 3.0, 2xUSB 2.0, 2xSATA 6G/s, SMBus, I2C, PCIe x4, 2xPCIe Mini, DIO, Audio, 9...36VDC-in
Price on request
Available
Available

System Architecture
Form Factor
Mini-ITX
Construction
Type
Fan
CPU
Processor Installed
Intel Core i3-6100U
Socket
CPU onboard
Max CPU frequency
2.3 GHz
Number of CPU
1
Chipset
Chipset
Intel Skylake SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC662 HD
Drive interfaces
mSATA
1
Extension Slots
Total
3
SIM Card slots
1
PCI Express x4
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.4 kg
Gross Weight
0.9 kg
