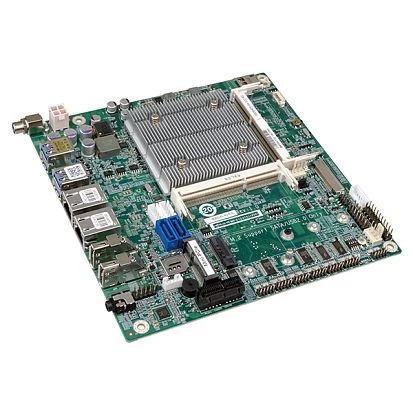

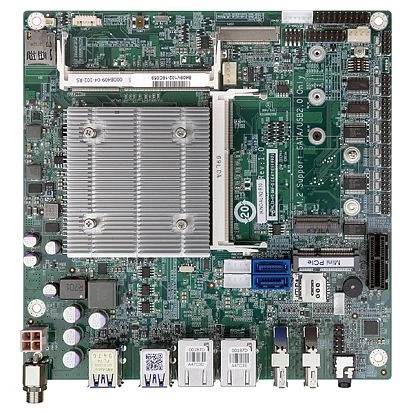

tKINO-AL-N2
IEI
SKU: 07372400
Thin Mini-ITX SBC supports Intel 14nm quad-core Pentium N4200 2.5GHz on-board SoC with DP++, Dual PCIe GbE, M.2, USB 3.0, PCIe Mini, SATA 6Gb/s, COM, Audio and RoHS
Price on request
Available
Available
System Architecture
Form Factor
Thin Mini-ITX
Construction
Type
Fanless
CPU
Processor Installed
Intel Pentium N4200
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xDisplayPort
Ethernet
Controller Type
Realtek RTL8111 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek HD Audio Codec
Extension Slots
Total
3
SIM Card slots
1
PCI Express x1
1
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, 2xDisplayPort
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
