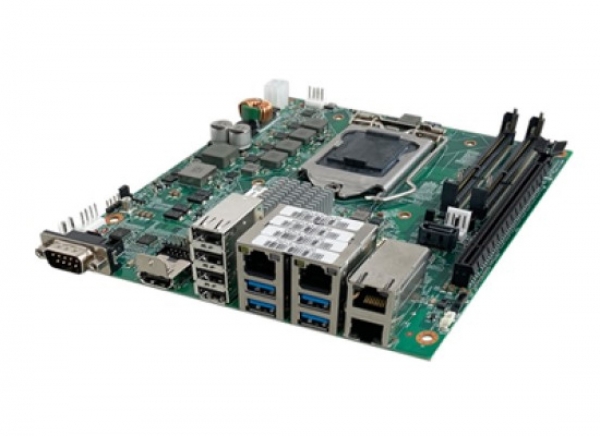

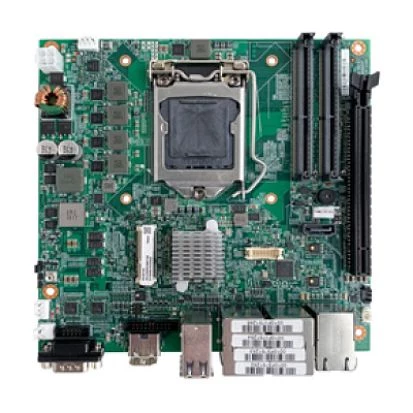

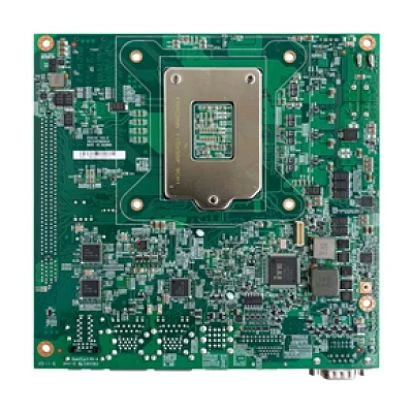

RCB100-L4
NEXCOM
SKU: 09159500
Mini-ITX SBC, LGA1151 for Intel 7th/6th Gen Core i7/i5/i3/Pentium/Celeron, DDR4, VGA, HDMI, 2xGbE LAN, 1xCOM, 4xUSB3.1 (Gen1), 4xUSB2.0, 1xSATA 3, PCIe x16, MiniPCIe, 24VDC-in
Price on request
Available
Available
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i210-AT, Intel i211-AT 10/100/1000 Mbps
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Extension Slots
Total
2
PCI Express x16
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, SATA
Connectors
DB9, HDMI, 4xRJ45 Ethernet, 8xUSB
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.7 kg
Gross Weight
0.7 kg
