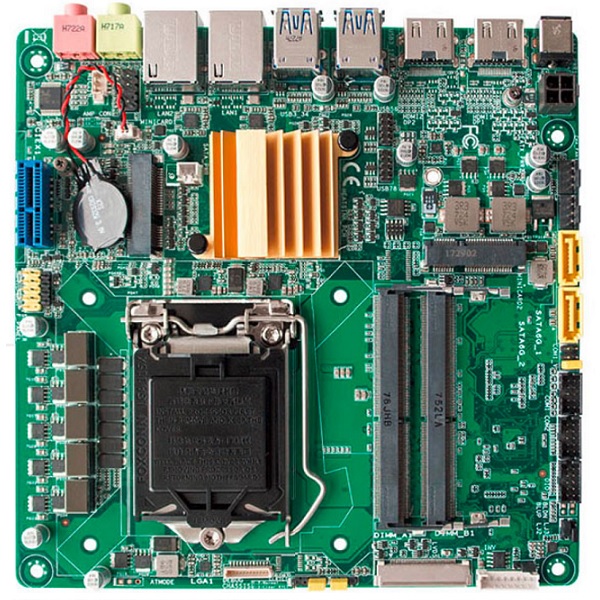

NEX-614B
NEXCOM
SKU: 07971700
Mini-ITX board, Intel Celeron/Core i3, 2x SO-DIMM 288 pin DDR4, 2x HDMI, 4x USB 3.0, 3x USB 2.0, GbE, SATA, 5x RS232, RS232/422/485, mPCIe, M.2 (SATA), 12-24 V DC
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Skylake
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Socket
LGA1151
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 2xHDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
7
USB 2.0
3
USB v3.x
4
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, 2xHDMI, 2xRJ45 Ethernet, Audio (in/out/Mic), Mic In, Line Out
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
