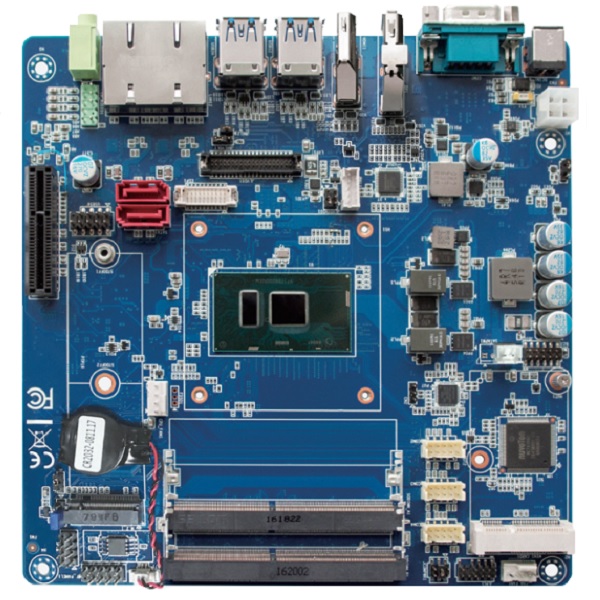

NEX-614A-3955U
NEXCOM
SKU: 07971600
Mini-ITX board, Intel Celeron 3955U 2 GHz, 2x SO-DIMM 288 pin DDR4 HDMI/DP/LVDS, 4x USB 3.0, 2x USB 2.0, 2x GbE, SATA, 3x RS232, RS232/422/485, 4x PCIe, mPCIe, M.2 (B key), 12 V DC
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
Processor Installed
Intel Celeron 3955U
Socket
LGA1151
Max CPU frequency
2 GHz
Number of CPU
1
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, LVDS, HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Extension Slots
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, Audio (in/out/Mic), Display Port
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
