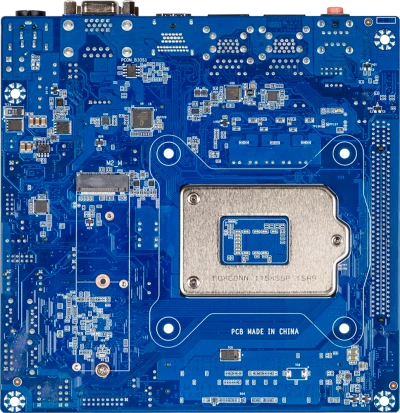

mITX-H42EA
GIGAIPC
SKU: 57830200
Mini-ITX Motherboard, Intel 10th Gen Core i9/i7/i5/i3/Pentium/Celeron CPU, H420E Chipset, Up to 64GB DDR4 RAM, HDMI, DP, VGA, LVDS/eDP, 2xGbE LAN, 2xCOM, 6xUSB 3.2, 3xUSB 2.0, 3xSATA, 2xM.2, 1xPCIe x16, 1x8-bit GPIO, Audio, 12-24VDC-in, 0..60
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Comet Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1200
Chipset
Chipset
Intel H420E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, LVDS, HDMI, VGA, eDP
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
9
USB 2.0
3
USB v3.x
6
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
3
M.2
1
Extension Slots
Total
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2242 M, 2280 M, 2230 E
Connectors
Connectors
4-pin ATX, DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Dimensions
Net Weight
0.45 kg
Gross Weight
0.7 kg
