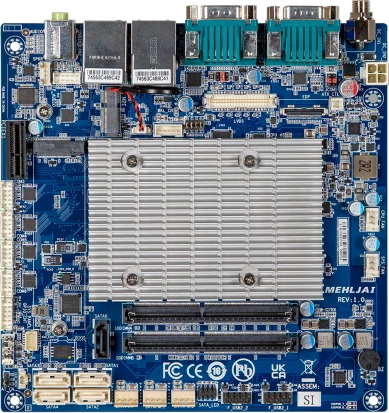

mITX-6412A
GIGAIPC
SKU: 57828400
Mini-ITX Motherboard, Intel Celeron J6412 2.6GHz CPU, Up to 32GB DDR4 RAM, HDMI, eDP, VGA, LVDS, 2xGbE LAN, 6xCOM, 2xUSB 3.2, 6xUSB 2.0, 5xSATA, 1xM.2 2280, 1xM.2 2230, 1xPCIe x1, 1x8-bit GPIO, Audio, TPM 2.0, 12-24VDC-in Jack, 0..60
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
Construction
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA, eDP
Ethernet
Controller Type
Realtek RTL8111H
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
USB 2.0
6
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
5
M.2
1
Extension Slots
Total
3
PCI Express x1
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Internal Ports
40-pin eDP
Connectors
4-pin ATX, 2xDB9, DB15 VGA, LVDS, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line In, DC Input
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.5 kg
Gross Weight
0.7 kg
