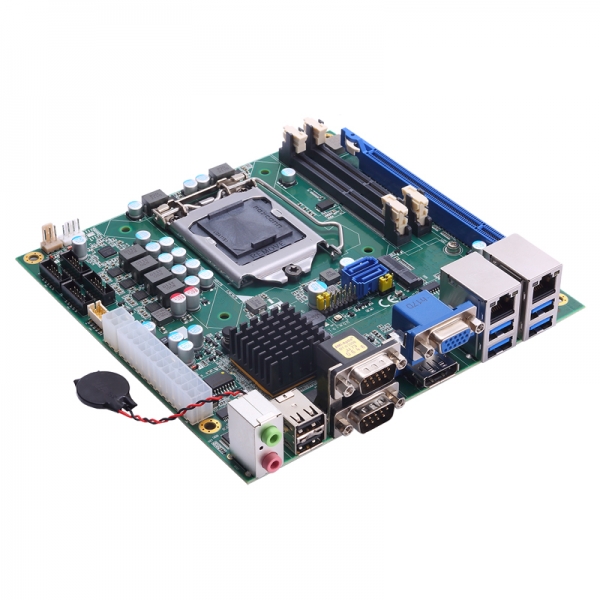

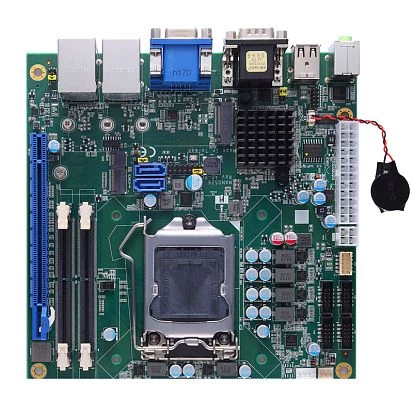

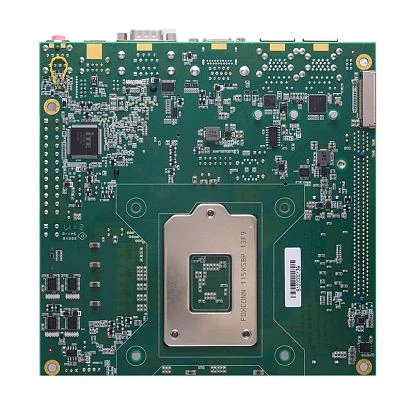

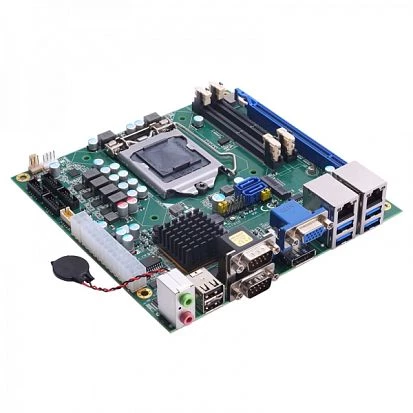

MANO526-Q370 A20
AXIOMTEK
SKU: 09378300
LGA1151 Mini ITX SBC with support Intel Core i7/i5/i3/Pentium/Celeron 9/8th Gen, Intel Q370, 2x260-pin SO-DIMM DDR4-2666/2400, DP++/eDP/VGA, 2xGbE LAN, 6xCOM, 4xUSB 2.0, 4xUSB 3.0, 2xSATA III, 1xPCIe x16, M.2 Key E, M.2 Key M, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
2
PCI Express x16
1
M.2
1
Connectors
Internal Ports
COM, 2xSATA 3, 4-pin (12V DC CPU), 24-pin ATX
Connectors
2xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Display Port
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.6 kg
Gross Weight
0.6 kg
