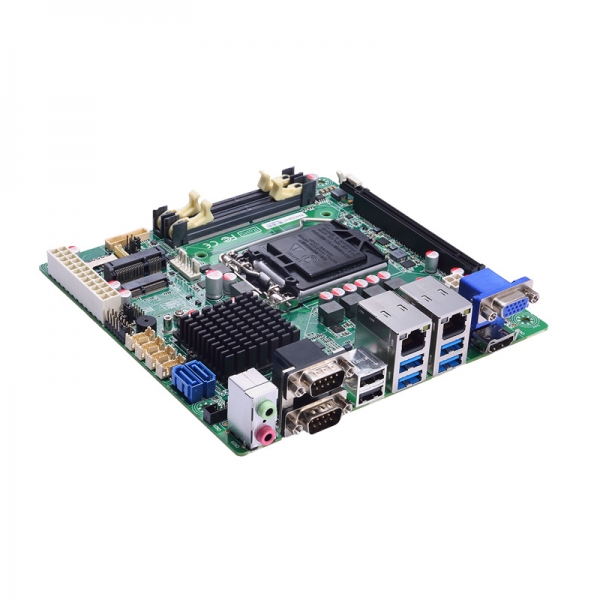

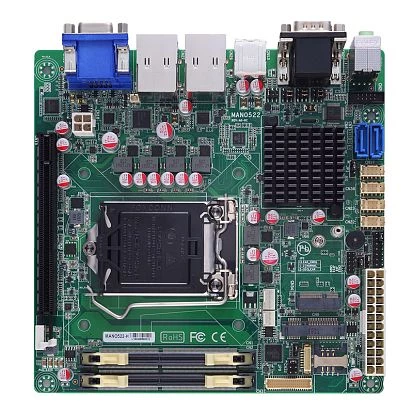

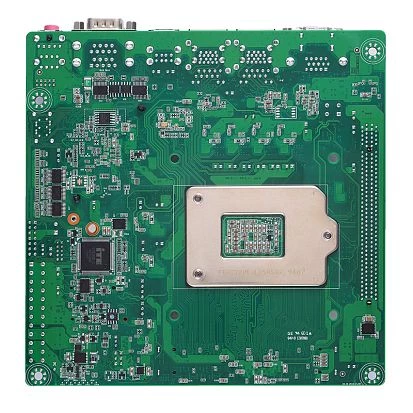

MANO522PHGGA-H310
AXIOMTEK
SKU: 09202000
LGA1151 Mini ITX SBC with support Intel Core i7/i5/i3/Pentium/Celeron 9th/8th Generation, Intel H310, 2x260-pin SO-DIMM DDR4-2666/2400, HDMI/LVDS/VGA, 2xGbE LAN, 6xCOM, 2xUSB 2.0, 4xUSB 3.0, 2xSATA III, 1xPCIe x16, 1x mSATA, 1xM.2 Key E 22x30
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
Extension Slots
Total
1
SIM Card slots
1
PCI Express x16
1
M.2
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xCOM, 2xSATA 3, 4-pin (12V DC CPU), 24-pin ATX
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
1 kg
