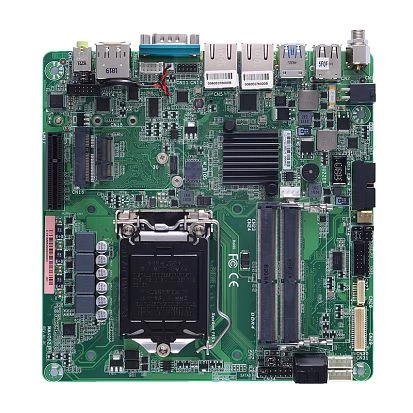

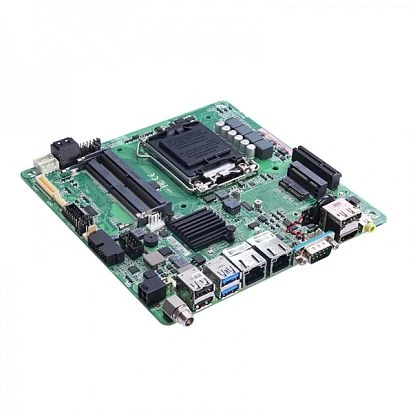

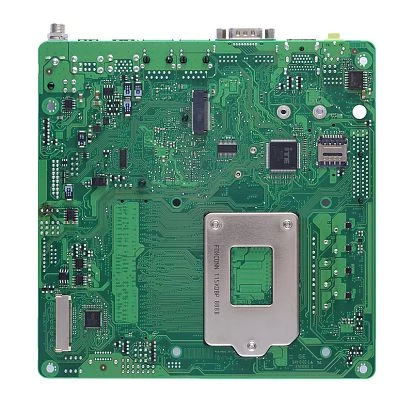

MANO521PHGGA-H310
AXIOMTEK
SKU: 08489500
LGA1151 Mini ITX SBC with support Intel Core i7/i5/i3/Pentium/Celeron 8th Generation, Intel H310, 2x260-pin SO-DIMM DDR4-2666/2400, DP++/HDMI/LVDS/VGA, 2xGbE LAN, 2xCOM, 4xUSB 2.0, 4xUSB 3.0, 2xSATA III, 1xPCIe x4, 1xMiniPCIe, 1xM.2 Key E 22x30
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662
Extension Slots
Total
3
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Hardware
Connectors
Internal Ports
COM, SATA 3, USB 2.0, 20-pin LVDS, USB 3.0
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
1 kg
