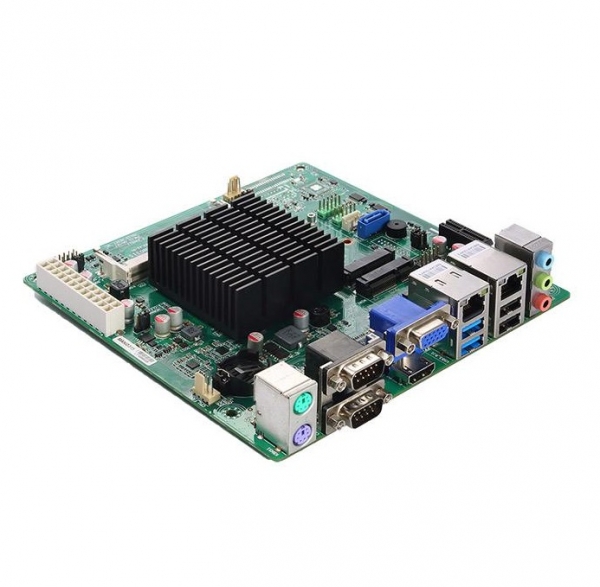

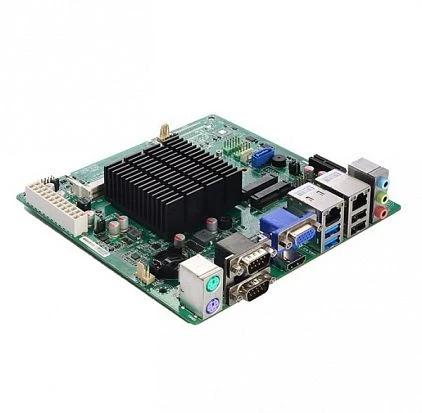

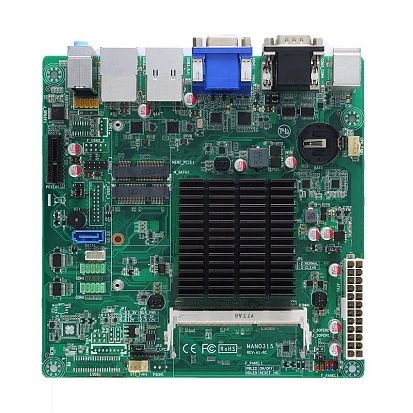

MANO315VHGGA-J3355
AXIOMTEK
SKU: 08341800
Mini ITX SBC, Intel Celeron J3355 2.0 GHz, 1xDDR3L-1600 SO-DIMM 8GB, 2xLAN, 1xSIM, 4xCOM, 1xSATA-600, 1xM.2, 6xUSB, 1xVGA, 1xHDMI, Audio
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron J3355
Max CPU frequency
2.5 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Realtek RTL8111F 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
4
USB Total
6
USB 2.0
4
USB v3.x
2
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
Extension Slots
Total
2
PCI Express x1
1
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
2xCOM, 2xUSB 2.0
Connectors
DB15 VGA, HDMI, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
1 kg
