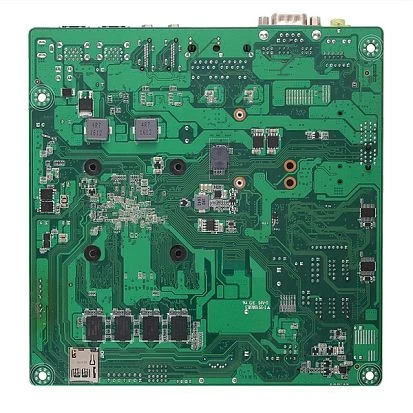

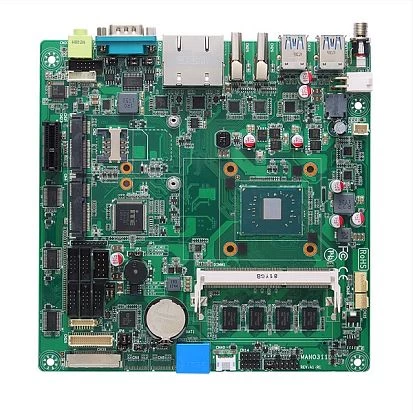

MANO311HGGA-N3350
AXIOMTEK
SKU: 08002200
Mini ITX SBC Motherboard, Intel Celeron N3350 1.1 GHz, 1x204-pin DDR3L-1867 SO-DIMM up to 8 GB, 1xSDXC, 1xPCI x1, 1xMini PCIe, 1xSIM, 1xPS/2, 6xCOM, 1xSATA-600, 6xUSB, 2xHDMI, 1xLVDS, 2xLAN, Audio
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Realtek RTL8111F 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
SD Slots
1
Extension Slots
Total
2
SIM Card slots
1
PCI Express x1
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Hardware
Connectors
Internal Ports
2xUSB 2.0
Connectors
4xUSB, Mic In, Line Out
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.7 kg
