MANO300

MANO300

AXIOMTEK
SKU: 07039900

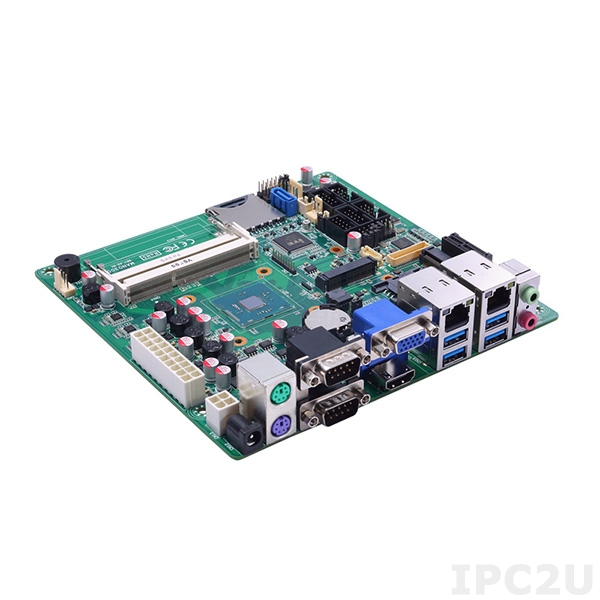

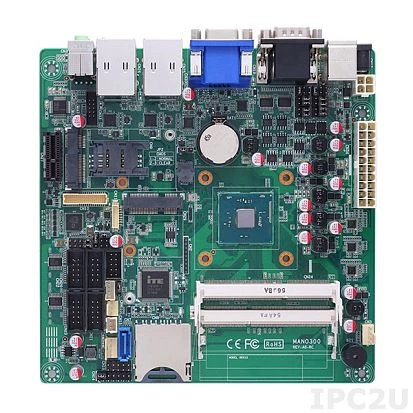

Mini ITX SBC with Intel Celeron N3160 2.24GHz, 2x204-pin SO-DIMM DDR3L-1333, SDXC slot, 6xCOM, 6xUSB, 2xGbE LAN, 1xSATA III, mSATA, 1xMini PCIe, 1xPCIe x1, DIO, Audio
Price on request
Available
Available

System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Realtek RTL8111F 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
SD Slots
1
Extension Slots
Total
2
SIM Card slots
1
PCI Express x1
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
SATA 3, 4x10-pin RS-232, 2x4-pin USB 2.0, 4-pin ATX, 20-pin ATX, 40-pin LVDS
Connectors
2xDB9, DB15 VGA, HDMI, PS/2 Mouse, PS/2 Keyboard, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
1.3 kg
