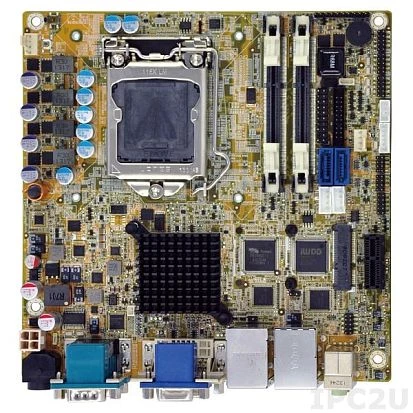

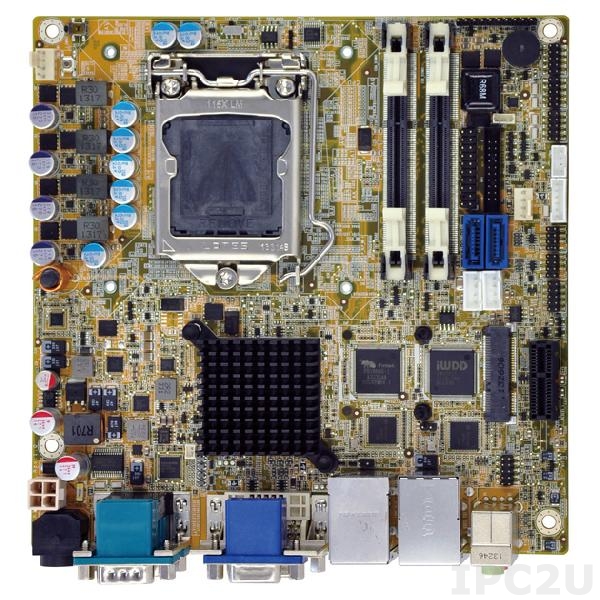

KINO-DH810

KINO-DH810

IEI
SKU: 06469100
Mini-ITX SBC LGA1150 Intel Core i7/i5/i3/Pentium/Celeron CPU per Intel H81, 204-pin DDR3 1066/1333/1600MHz, 1xVGA, 1xDVI-D, 1xiDP, 5xRS-232, 1xRS-422/485, 6xUSB 2.0, 2xUSB 3.0, 2xSATA 6Gb/s, 1xPCIe x1, 2xLAN, HD Audio
Price on request
Available on order
Available on order
System Architecture
Form Factor
Mini-ITX
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1150
Chipset
Chipset
Intel H81
Memory
Form-factor
DDR3, DDR3L
Socket Type
2xSODIMM
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-422/485
1
USB Total
8
USB 2.0
6
USB v3.x
2
Audio
Audio Controller
Realtek ALC662 HD
Extension Slots
Total
2
PCI Express x1
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 2, 4xUSB 2.0, 3x10-pin RS-232, iDP, 6-pin KB/MS, 4-pin ATX, 10-pin Audio
Connectors
2xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Audio, DC Input
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
