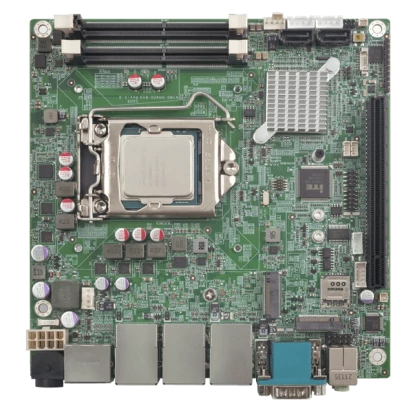

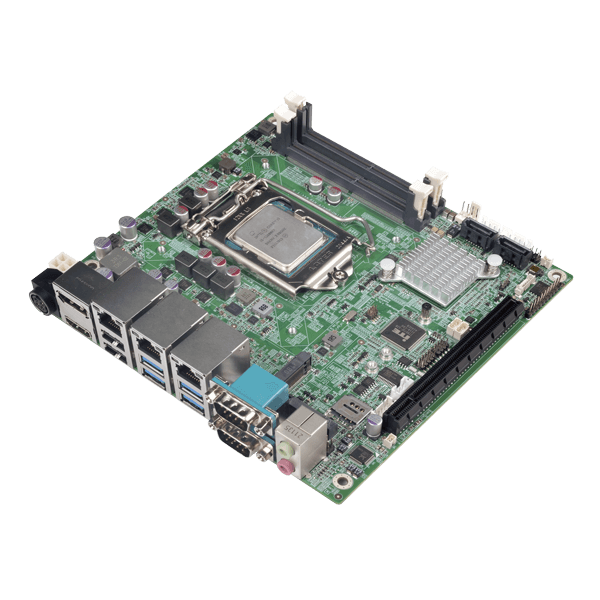

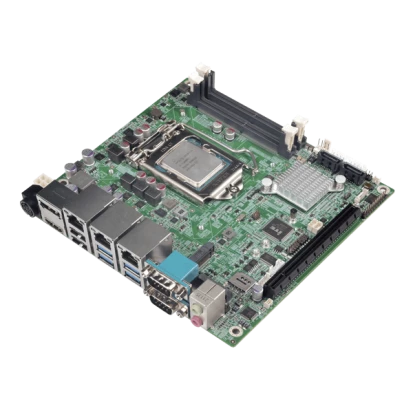

KINO-DH420
IEI
SKU: 09733100
Mini-ITX SBC LGA1200 Intel Core i7/i5/i3/Pentium/Celeron CPU per Intel H420, 2x260-pin DDR4 up to 64Gb, HDMI/DP, 3xGbE LAN, 4xCOM, 8xUSB, SATA 6Gb/s, 1xPCIe x16, 2xM.2, HD Audio, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Comet Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1200
Chipset
Chipset
Intel H420E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232
3
RS-422
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888 HD
Extension Slots
Total
3
SIM Card slots
Yes
PCI Express x16
1
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 3, 4-pin SMBus, 4-pin I2C, 1x4-pin RS-422/485, 10-pin RS-232, 2x4-pin USB 2.0, 8-pin GPIO, 8-pin ATX
Connectors
2xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, Display Port
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Comet Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1200
Chipset
Chipset
Intel H420E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232
3
RS-422
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888 HD
Extension Slots
Total
3
SIM Card slots
Yes
PCI Express x16
1
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 3, 4-pin SMBus, 4-pin I2C, 1x4-pin RS-422/485, 10-pin RS-232, 2x4-pin USB 2.0, 8-pin GPIO, 8-pin ATX
Connectors
2xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, Display Port
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Comet Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1200
Chipset
Chipset
Intel H420E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232
3
RS-422
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888 HD
Extension Slots
Total
3
SIM Card slots
Yes
PCI Express x16
1
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 3, 4-pin SMBus, 4-pin I2C, 1x4-pin RS-422/485, 10-pin RS-232, 2x4-pin USB 2.0, 8-pin GPIO, 8-pin ATX
Connectors
2xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, Display Port
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Comet Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Socket
LGA1200
Chipset
Chipset
Intel H420E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232
3
RS-422
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888 HD
Extension Slots
Total
3
SIM Card slots
Yes
PCI Express x16
1
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 3, 4-pin SMBus, 4-pin I2C, 1x4-pin RS-422/485, 10-pin RS-232, 2x4-pin USB 2.0, 8-pin GPIO, 8-pin ATX
Connectors
2xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, Display Port
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
