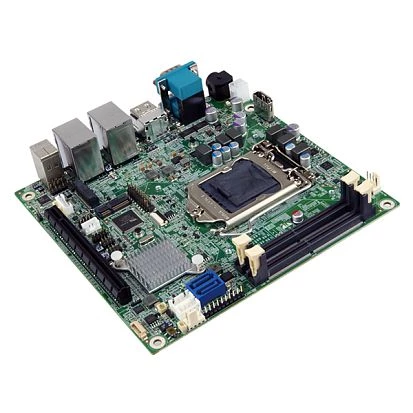

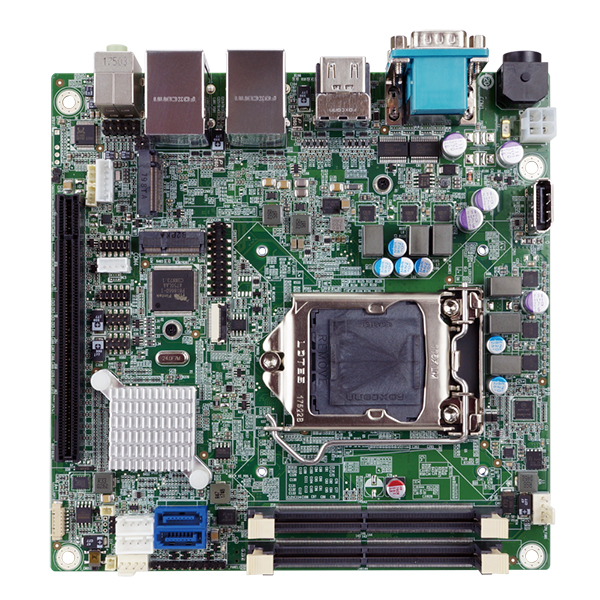

KINO-DH310
IEI
SKU: 08387700
Mini-ITX SBC LGA1151 Intel Core i7/i5/i3/Pentium/Celeron CPU per Intel H310, 2x260-pin DDR4 up to 64Gb, 2xHDMI/DP, 2xGbE LAN, 4xCOM, 8xUSB, 2xSATA 6Gb/s, 1xPCIe x16, 2xM.2, HD Audio, SMBus
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Number of CPU
1
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
2
Audio
Audio Controller
Realtek ALC662
Extension Slots
Total
3
PCI Express x16
1
M.2
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 2xSATA 3, 4xUSB 2.0, 10-pin DIO, TPM, 4-pin I2C, 6-pin KB/MS, 4-pin Power, 10-pin Audio
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, 4-pin DC input, 2xDB9 Male
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
