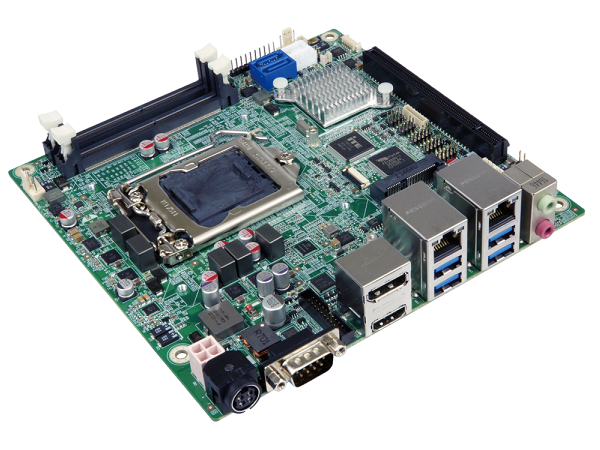

KINO-DH110
IEI
SKU: 08064000
Mini-ITX SBC LGA1151 Intel Core i7/i5/i3/Pentium/Celeron CPU per Intel H110, 2x260-pin DDR4 up to 32 Gb, VGA/HDMI/iDP, 2xCOM, 8xUSB, 2xSATA 6Gb/s, 1xPCIe x16, M.2, Mini PCIe, HD Audio, SMBus
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Number of CPU
1
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DisplayPort, HDMI, iDP
Ethernet
Controller Type
Intel i211, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
2
Audio
Audio Controller
Realtek ALC662
Extension Slots
Total
3
PCI Express x16
1
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 2xSATA 3, 4xUSB 2.0, iDP, 6-pin KB/MS
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, 4-pin DC input, DB9 Male
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
