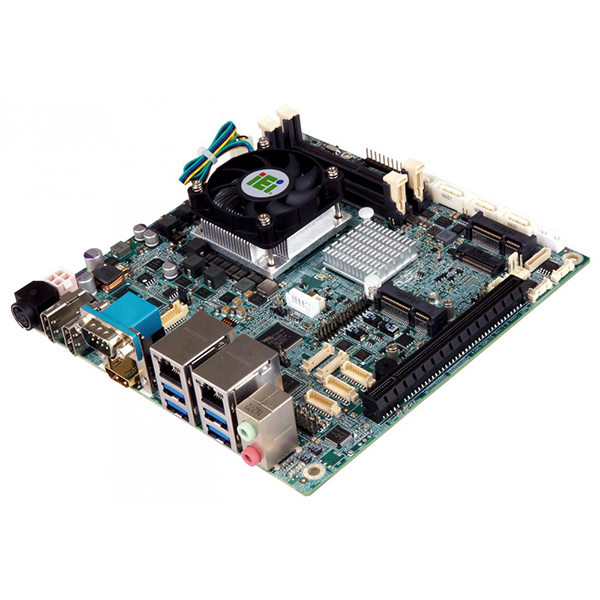

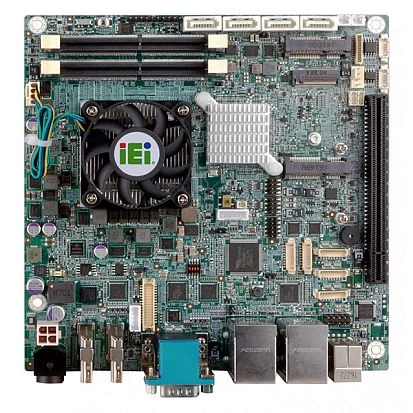

KINO-DCM236-E3
IEI
SKU: 07460300
Mini-ITX Intel Xeon E3-1505M v5(45W), 2x260-pin DDR4 SO-DIMM 2133MHz, 1xLVDS, 3xHDMI, 4xSATA 6 Gb/s, 3xRS-232, 2xRS-232/422/485, 4xUSB 3.0, 1xPCIe x16, 1xM.2, 2x PCIe Mini, 2xLAN, 2xAudio jack, 1xFront audio
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
Construction
Type
Fan
CPU
CPU Support Type
Xeon
Chipset
Chipset
Intel CM236
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 3xHDMI
Ethernet
Controller Type
Intel i211, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC662
Drive interfaces
RAID Levels
1, 5, 10
mSATA
1
Extension Slots
Total
4
PCI Express x16
1
M.2
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, 4-pin DC input, 3xHDMI
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
0.9 kg
