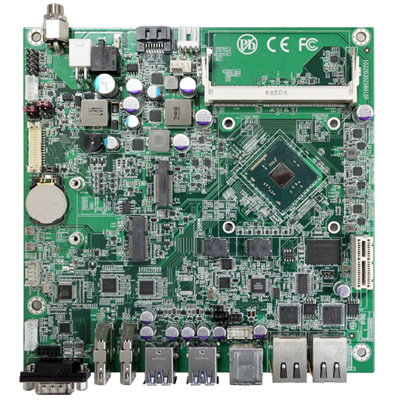

ITX-i2203-N3160
Arbor
SKU: 08049400
Mini-ITX Motherboard, Intel Celeron N3160 1.6GHz CPU, Up to 8GB DDR3L RAM, 2xHDMI, 1xLVDS, 2xGbE LAN, 1xRS232/422/485, 8xUSB, 6-pin PS/2, 1xSATA, 1xPCIe x1, 1xM.2 Key-E, 1xM.2 Key-B, MicroSIM, Audio, 24VDC-in
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3160
Socket
FCBGA1170
Max CPU frequency
2.24 GHz
Chipset
Chipset
Intel Braswell SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC269
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
2
SIM Card slots
1, Micro-SIM
PCI Express x1
1
M.2
2
M.2 Form Factor
2242 M, 2230 E
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
24-pin ATX, USB 3.0
Connectors
DB9, 2xHDMI, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out
Software
Operating System Compatibility
Windows 8.1
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
