IFB122-UL8E-A
AXIOMTEK
SKU: 10298100
Robust Din-rail Fanless Embedded system with i.MX6UltraLite ARM Cortex-A7 processor 528MHz, 256MB DDR3 SDRAM, 8GB eMMC Flash, 2xLAN, 2xCOM, 1xUSB 2.0, 2xDI/1xDO, PCIe Mini, SIM Slot, IP30, 9...48VDC-in, -40...+70C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis

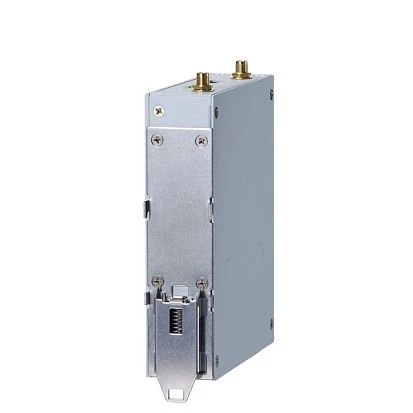

Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
Processor Installed
Freescale i.MX6UL
CPU Support Type
ARM Cortex
Max CPU frequency
0.53 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.25 GB
Maximum Memory
0.25 GB
Assembly
Fixed on Board
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
USB 2.0
1
Digital Input-Output
Channels of DIO
3
Digital Input
Isolation DIO
Yes
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
8 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

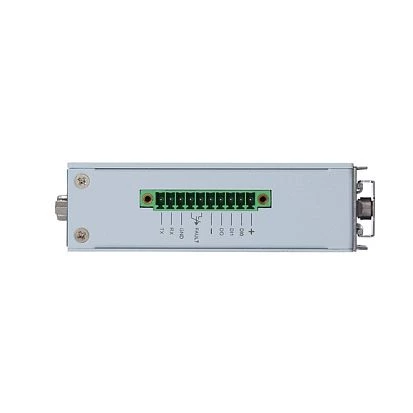

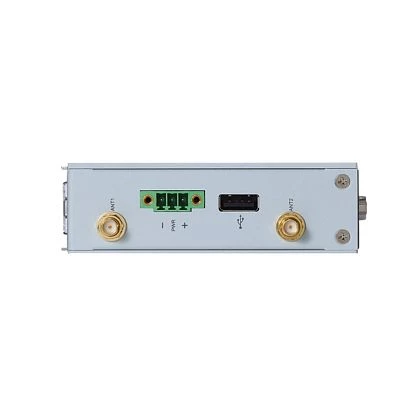

2xDB9, 2xRJ45 Ethernet, 1xUSB, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..48 V
Software
Operating System Compatibility
Linux kernel 3.x
Dimensions and weight
Width
31 mm
Height
125 mm
Depth
100 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2G @5~500MHz, amplitude 0.35ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.44 kg
Gross Weight
0.44 kg
