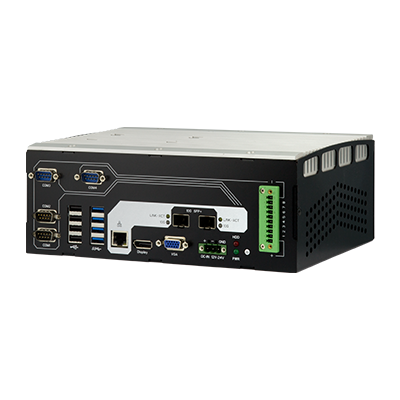

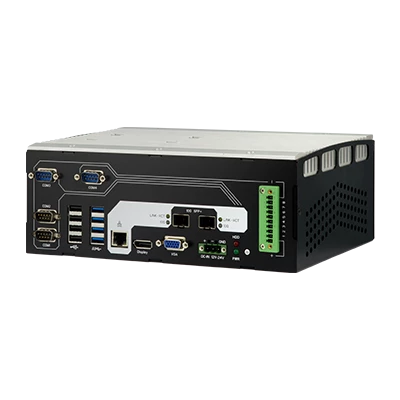

ARES-1973C-48C8
Arbor
SKU: 57846400
Fanless Embedded PC, Intel 6/7th Gen Core i3/i5/i7 CPU, C236 Chipset, Up to 32GB DDR4 RAM, DP/VGA, 1xGbE LAN, 2x10GbE SFP LAN, 4xUSB 3.0, 4xUSB 2.0, 4xCOM, 1x8-bit DIO (optional 32-bit), 1xSATA 3, 1xM.2 2242/2280, 12-24VDC-In, -20..50C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel C236
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i219-LM, Intel X710-BM2
Total Ethernet
3
10/100/1000 Mbit/s
1
10 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
9
USB 2.0
5
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M, 2280 M
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, DB15 VGA, RJ45 Ethernet, 8xUSB, Display Port, 2xSFP, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Consumption
80 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise
Dimensions and weight
Width
254 mm
Height
94 mm
Depth
170 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/ SSD, according to IEC 68-2-64
Shock
10G peak acceleration (11 m sec. duration), operation; 30G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.2 kg
Gross Weight
4.8 kg
