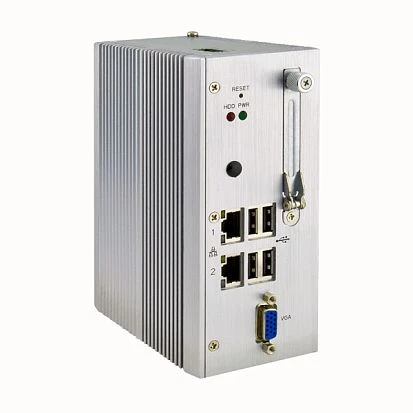

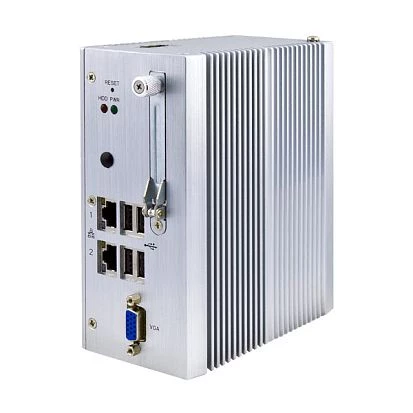

ARES-5300
Arbor
SKU: 57846900
Fanless DIN-Rail Embedded PC, Intel Celeron J1900 CPU, Up to 8GB DDR3L RAM, VGA, 2xGbE LAN, 4xUSB 2.0, 1x8-bit DIO, 1xMiniCard (mSATA), 1xCFast slot, 9-36VDC-In, -30..60C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
USB Total
5
USB 2.0
4
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB15 VGA, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), CFast slot
System Power Input
Input Voltage DC
9..36 V
Power Consumption
25 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
155 mm
Height
70 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-30..60 °C
Humidity
10-95%
Vibration
3G rms/5~500Hz /random Operation
Shock
Operating 40G (11 ms) ; Non-operation 60G with SSD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL 508
Dimensions
Net Weight
1.5 kg
Gross Weight
1.85 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
USB Total
5
USB 2.0
4
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB15 VGA, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), CFast slot
System Power Input
Input Voltage DC
9..36 V
Power Consumption
25 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
155 mm
Height
70 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-30..60 °C
Humidity
10-95%
Vibration
3G rms/5~500Hz /random Operation
Shock
Operating 40G (11 ms) ; Non-operation 60G with SSD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL 508
Dimensions
Net Weight
1.5 kg
Gross Weight
1.85 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
USB Total
5
USB 2.0
4
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB15 VGA, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), CFast slot
System Power Input
Input Voltage DC
9..36 V
Power Consumption
25 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
155 mm
Height
70 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-30..60 °C
Humidity
10-95%
Vibration
3G rms/5~500Hz /random Operation
Shock
Operating 40G (11 ms) ; Non-operation 60G with SSD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL 508
Dimensions
Net Weight
1.5 kg
Gross Weight
1.85 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
USB Total
5
USB 2.0
4
Drive interfaces
mSATA
1
CFast Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB15 VGA, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), CFast slot
System Power Input
Input Voltage DC
9..36 V
Power Consumption
25 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
155 mm
Height
70 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-30..60 °C
Humidity
10-95%
Vibration
3G rms/5~500Hz /random Operation
Shock
Operating 40G (11 ms) ; Non-operation 60G with SSD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL 508
Dimensions
Net Weight
1.5 kg
Gross Weight
1.85 kg
