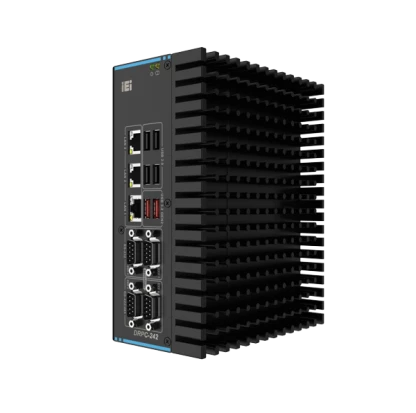

DRPC-242-ADL-P-Ri7ECS
IEI
SKU: 11047000
DIN-Rail Embedded System, Intel Core i7-1370PE 1.9GHz CPU, 8GB DDR4 RAM, HDMI/DP, 3x2.5GbE LAN, 4xCOM, 2xRS232 Opt., 2xUSB 3.2, 4xUSB 2.0, 12-bit GPIO Opt., 1x2.5" Drive Bay, 1xM.2 2280 Key-M, 1xM.2 3052/3042 Key-B, 1xM.2 2230 Key-E, 12-28VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i7-1370PE
Socket
CPU onboard
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i226-LM, Intel i226V
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED, SSD LED
Controls
1xReset
Connectors
Connectors
4xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..28 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
190 mm
Height
81 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.88 kg
Gross Weight
2.66 kg
