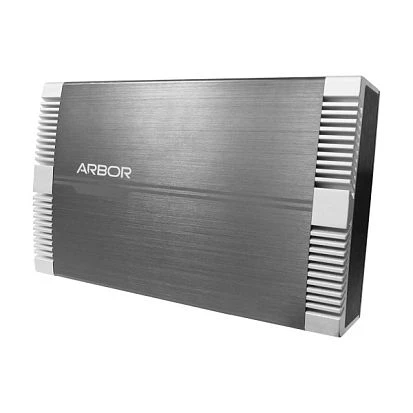

ARES-1970-6300U
Arbor
SKU: 57846700
Fanless Embedded PC, Intel 6th Gen Core i5-6300U CPU, Up to 16GB DDR4 RAM, VGA/HDMI, 2xGbE LAN, 4xUSB 3.0, 2xUSB 2.0, 8xCOM, 1x2.5" Drive Bay, 1xmSATA Full-Size, 1xMiniPCIe Full-Size, 1xMiniPCIe Half-Size, SIM, Audio, 12-28VDC-In, -20..70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i5-6300U
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 520
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
8
RS-232/485
4
RS-232/422/485
4
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, SIM Card Slot, DC input (terminal block), 8xDB9
System Power Input
Input Voltage DC
12..28 V
Power Consumption
30 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Linux kernel 4.x
Dimensions and weight
Width
265 mm
Height
62 mm
Depth
141 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/mSATA, according to IEC 68-2-64
Shock
10G peak acceleration (11 m sec. duration), operation; 30G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.66 kg
Gross Weight
1.95 kg
