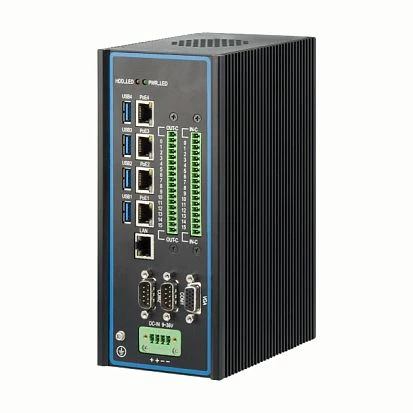

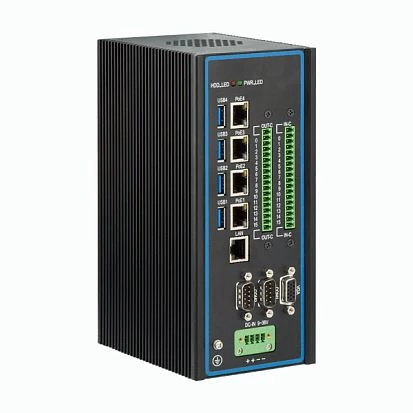

ARES-1965-Series

Arbor
SKU: 57846500
Fanless Embedded PC, Intel 6/7th Gen Core i3/i5/i7/Celeron CPU, Up to 16GB DDR4 RAM, VGA, 1xGbE LAN, 4xGbE PoE LAN, 4xUSB 3.0, 2xCOM, 1x32-bit DIO, 1x2.5" Drive Bay, 1xmSATA Full-Size, 1xMiniPCIe Full-Size, 9-36VDC-In, 0..55C
Price on request
Available
Available

External Power Adapter
Price with VAT
Price on request
Add On Card 1
Price on request
Accessories
Price on request
External Power Adapter
Price with VAT
Price on request
Add On Card 1
Price on request
Accessories
Price on request

Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
CPU onboard
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232
2
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
Channels of DIO
32
Isolation DIO
Yes
Drive interfaces
SATA 3
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, 5xRJ45 Ethernet, 4xUSB, 2xSFP, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
60 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 3.x, Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
195 mm
Height
90 mm
Depth
140 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/ mSATA, according to IEC 68-2-64
Shock
10G peak acceleration (11 m sec. duration), operation; 30G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.3 kg
Gross Weight
2.7 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
CPU onboard
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232
2
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
Channels of DIO
32
Isolation DIO
Yes
Drive interfaces
SATA 3
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, 5xRJ45 Ethernet, 4xUSB, 2xSFP, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
60 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 3.x, Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
195 mm
Height
90 mm
Depth
140 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/ mSATA, according to IEC 68-2-64
Shock
10G peak acceleration (11 m sec. duration), operation; 30G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.3 kg
Gross Weight
2.7 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
CPU onboard
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232
2
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
Channels of DIO
32
Isolation DIO
Yes
Drive interfaces
SATA 3
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, 5xRJ45 Ethernet, 4xUSB, 2xSFP, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
60 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 3.x, Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
195 mm
Height
90 mm
Depth
140 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/ mSATA, according to IEC 68-2-64
Shock
10G peak acceleration (11 m sec. duration), operation; 30G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.3 kg
Gross Weight
2.7 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
CPU onboard
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232
2
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
Channels of DIO
32
Isolation DIO
Yes
Drive interfaces
SATA 3
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, 5xRJ45 Ethernet, 4xUSB, 2xSFP, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Consumption
60 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 3.x, Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
195 mm
Height
90 mm
Depth
140 mm
Operating Conditions
Operating Temperature
0..55 °C
Humidity
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/ mSATA, according to IEC 68-2-64
Shock
10G peak acceleration (11 m sec. duration), operation; 30G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.3 kg
Gross Weight
2.7 kg

Documentation
ARES-1965-Series-User-Manual.pdf ARES-1965-Series-Datasheet.pdf
Documentation
ARES-1965-Series-User-Manual.pdf ARES-1965-Series-Datasheet.pdf
Documentation
ARES-1965-Series-User-Manual.pdf ARES-1965-Series-Datasheet.pdf
Documentation
ARES-1965-Series-User-Manual.pdf ARES-1965-Series-Datasheet.pdf

Get a Quote

Arbor
SKU: 57846500
ARES-1965-Series
ARES-1965-Series

Recommended products

NIFE-106-A01 NIFE-106-A01 NIFE-106-A01 NIFE-106-A01 NIFE-106-A01
NEXCOM
NIFE-106-A01
Fanless Fieldbus DIN-RAIL Automation Computer, NIFE-106, Intel N97 2.0GHz CPU, 8GB LPDDR5 RAM, 64GB eMMC, 1xHDMI, 3x2.5GbE LAN, 2xUSB 3.2, 1xRS232/485 2.5KV isolation, 12/24VDC-in
NIFE-106-A06 NIFE-106-A06 NIFE-106-A06 NIFE-106-A06 NIFE-106-A06
NEXCOM
NIFE-106-A06
Fanless Din-Rail NIFE-106 Automation Computer, Intel Atom x7213E 3.4GHz CPU, 8GB LPDDR5 RAM, 128GB eMMC, HDMI, 3x2.5GbE LAN, 2xUSB 3.2, 1xUSB Type-C DP/PD Alt., 2xRS232/485 (2.5KV isol.), 8-bit DIO, Fieldbus Slot, 1xMiniPCIe, 1xM.2 Key-B, 12-24VDC-in
NIFE-106-A05 NIFE-106-A05 NIFE-106-A05 NIFE-106-A05
NEXCOM
NIFE-106-A05
Fanless Din-Rail NIFE-106 Automation Computer, Intel Atom x7213E 3.4GHz CPU, 8GB LPDDR5 RAM, 128GB eMMC, HDMI, 3x2.5GbE LAN, 2xUSB 3.2, 1xRS232/485 (2.5KV isol.), 12/24VDC-in
ARES-1983H-AI-MX ARES-1983H-AI-MX ARES-1983H-AI-MX
Arbor
ARES-1983H-AI-MX
Embedded Edge AI Box PC, Ext. Fan, Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU, H610E Chipset, 8GB DDR5 RAM, 256GB 2.5" SSD, 1xMemryX MX3, DP/VGA, 1x2.5GbE LAN, 2xGbE LAN, 4xUSB 3.2, 2xUSB 2.0, 2xCOM, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 12-24VDC-in
ARES-1983H-AI-4MX ARES-1983H-AI-4MX ARES-1983H-AI-4MX ARES-1983H-AI-4MX
Arbor
ARES-1983H-AI-4MX
Embedded Edge AI Box PC, Ext. Fan, Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU, Q670E Chipset, 16GB DDR5 RAM, 256GB NVMe SSD, 4xMemryX MX3, DP/VGA, 1x2.5GbE LAN, 2xGbE LAN, 6xUSB 3.2, 2xUSB 2.0, 2xCOM, 1xMiniPCIe, 1x2.5" Bay, 1xM.2 Key-E, 12-24VDC-in
ARES-1983H-AI-2MX ARES-1983H-AI-2MX ARES-1983H-AI-2MX ARES-1983H-AI-2MX
Arbor
ARES-1983H-AI-2MX
Embedded Edge AI Box PC, Ext. Fan, Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU, H610E Chipset, 8GB DDR5 RAM, 256GB NVMe SSD, 2xMemryX MX3, DP/VGA, 1x2.5GbE LAN, 2xGbE LAN, 4xUSB 3.2, 2xUSB 2.0, 2xCOM, 1xMiniPCIe, 1x2.5" Bay, 1xM.2 Key-E, 12-24VDC-in
ARES-1983H-AI-Series ARES-1983H-AI-Series ARES-1983H-AI-Series ARES-1983H-AI-Series
Arbor
ARES-1983H-AI-Series
Embedded Edge AI Box PC, Ext. Fan, Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU, H610E/Q670E Chipset, Up to 16GB DDR5 RAM, DP/VGA, 1x2.5GbE LAN, 2xGbE LAN, 4/6xUSB 3.2, 2xUSB 2.0, 2xCOM, 1xMiniPCIe, 1x2.5" Bay or 1xM.2 Key-M, 1xM.2 Key-E, 12-24VDC-in
ICO150-x7433-AW ICO150-x7433-AW
AXIOMTEK
ICO150-x7433-AW
Fanless Din-rail Box PC, Intel Atom x7433RE 1.5GHz CPU, Up to 16GB DDR5 RAM, HDMI, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 4xCOM, 8-bit DIO, 1xFull-Size MiniPCIe, 1xHalf-Size MiniPCIe, 1xM.2 Key-B+M, 9-36VDC-in, Wide Temp. -40..70C (with WT RAM/SSD)
ICO150-x7433-AC ICO150-x7433-AC ICO150-x7433-AC
AXIOMTEK
ICO150-x7433-AC
Fanless Din-rail Box PC, Intel Atom x7433RE 1.5GHz CPU, Up to 16GB DDR5 RAM, 1xHDMI, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 4xCOM, 8-bit DIO, 1xFull-Size MiniPCIe (LTE), 1xHalf-Size MiniPCIe (SATA/WiFi), 1xM.2 Key-B+M, 9-36VDC-in
BEDROCK-PC-RAI300-Tile BEDROCK-PC-RAI300-Tile BEDROCK-PC-RAI300-Tile BEDROCK-PC-RAI300-Tile
SolidRun
BEDROCK-PC-RAI300-Tile
DIN-Rail Bedrock RAI300 PC, AMD Ryzen AI 9 HX370 CPU, 15W TDP, Up to 128GB DDR5 RAM, HDMI+USB4 or HDMI/DP/2xMiniDP, Up to 4x2.5GbE LAN, Up to 4xUSB 3.2, 1xMiniUSB, Up to 4xM.2 (3xKey-M NVME/Hailo, 1xKey-B LTE), Up to 12-60VDC-in w/ Power Module
BEDROCK-PC-RAI300-RAI3X60 BEDROCK-PC-RAI300-RAI3X60 BEDROCK-PC-RAI300-RAI3X60 BEDROCK-PC-RAI300-RAI3X60
SolidRun
BEDROCK-PC-RAI300-RAI3X60
DIN-Rail Bedrock RAI300 PC, AMD Ryzen AI 9 HX370 CPU, 60W TDP, Up to 128GB DDR5 RAM, HDMI+USB4 or HDMI/DP/2xMiniDP, Up to 4x2.5GbE LAN, Up to 4xUSB 3.2, 1xMiniUSB, Up to 4xM.2 (3xKey-M NVME/Hailo, 1xKey-B LTE), Up to 12-60VDC-in w/ Power Module
ARES-1983H-FL ARES-1983H-FL ARES-1983H-FL
Arbor
ARES-1983H-FL
Fanless Embedded Din-Rail Box PC, Intel 12/13th Gen Core i3/i5/i7 CPU (35W Max), H610E Chipset, Up to 32GB DDR5 RAM, DP/VGA, 1x2.5GbE LAN, 2xGbE LAN, 4xUSB 3.2, 2xUSB 2.0, 2xUSB 2.0 Int., 2xCOM, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 12-24VDC-In, R1.0
NIFE-106-A04 NIFE-106-A04 NIFE-106-A04 NIFE-106-A04 NIFE-106-A04
NEXCOM
NIFE-106-A04
Embedded Automation System, Intel Atom x7433E CPU, 8GB LPDDR5 RAM, 64GB eMMC, HDMI, 3x2.5GbE LAN, 2xUSB 3.2, 1xUSB Type-C DP/PD Alt., 2xRS232/485 (2.5KV isolation), 8-bit DIO, Fieldbus Slot, 1xMiniPCIe, 1xM.2 2242/3052 Key-B (LTE/SATA), 12-24VDC-in
IRDRW500 IRDRW500 IRDRW500 IRDRW500 IRDRW500
Winmate
IRDRW500
Fanless DIN-Rail Box PC, Intel Core i5-1335U 4.4GHz CPU, 8GB (Up to 32GB) DDR5 RAM, 256GB NVME SSD, 2xHDMI, 4x2.5GbE LAN, 3xUSB 3.2, 1xUSB 2.0, 4xCOM, 16-bit DIO, 1xM.2 Key-B, 1xM.2 Key-E (Hailo-8 or WiFi), Audio, 9-36VDC-in with 120W Power Adapter
ARES-5311-E3950P ARES-5311-E3950P ARES-5311-E3950P ARES-5311-E3950P
Arbor
ARES-5311-E3950P
Fanless Din-Rail Embedded PC, Intel Atom E3950 CPU, Up to 8GB DDR3L RAM, 64GB eMMC, HDMI/VGA, 2xPoE GbE LAN, 1xGbE LAN, 4xUSB 3.0/2.0, 9xCOM, 32-bit DIO, 2xMiniPCIe, 1xM.2 2242 Key-M, 2xSIM, 9-36VDC-In
ARES-5311-Series ARES-5311-Series ARES-5311-Series ARES-5311-Series
Arbor
ARES-5311-Series
Fanless Din-Rail Embedded PC, Intel Atom/Celeron CPU, Up to 8GB DDR3L RAM, 64GB eMMC, HDMI/VGA, 2xPoE GbE LAN, 1xGbE LAN, 4xUSB 3.0/2.0, 9xCOM, 32-bit DIO, 2xMiniPCIe, 1xM.2 2242 Key-M, 2xSIM, 9-36VDC-In
ARES-5311-E3350P ARES-5311-E3350P ARES-5311-E3350P ARES-5311-E3350P
Arbor
ARES-5311-E3350P
Fanless Din-Rail Embedded PC, Intel Celeron N3350 CPU, Up to 8GB DDR3L RAM, 64GB eMMC, HDMI/VGA, 2xPoE GbE LAN, 1xGbE LAN, 4xUSB 3.0/2.0, 9xCOM, 32-bit DIO, 2xMiniPCIe, 1xM.2 2242 Key-M, 2xSIM, 9-36VDC-In
ARES-5320--C ARES-5320--C ARES-5320--C ARES-5320--C ARES-5320--C
Arbor
ARES-5320--C
Fanless Din-Rail ARES-5320 System, Intel Atom x6425RE CPU, 16GB DDR4 RAM, 256GB SSD, 64GB eMMC, DP/VGA, 3x2.5GbE LAN or 2xPoE/1x2.5GbE, 3xUSB 3.2, 1xUSB 2.0, 4xCOM, 8-bit DIO, 3xMiniPCIe (2xFull/1xHalf), 9-36VDC-in, 60W Power Adapter, Win 11 IoT LTSC
