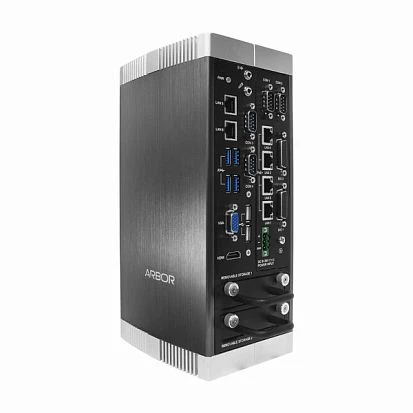

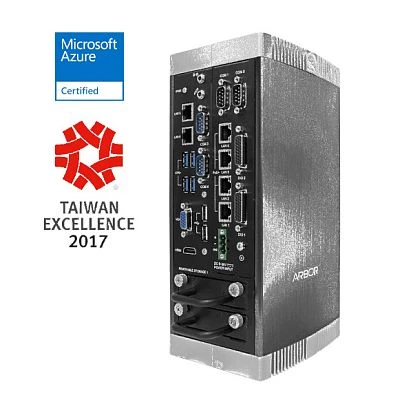

ARES-1970-E-6300U
Arbor
SKU: 09211800
Fanless Embedded Vision Controller with Intel Core i5-6300U, 4GB DDR4, HDMI, VGA, 2xLAN, 4xPoE, 4xCOM, 4xUSB 3.0/2.0, 2xUSB 2.0, 16DI/16DO, mSATA, 2xmPCIe, Audio, 19-36VDC
End-of-life product
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i5-6300U
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 520
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
32
Isolation DIO
Yes
Drive interfaces
SATA 3
2
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors

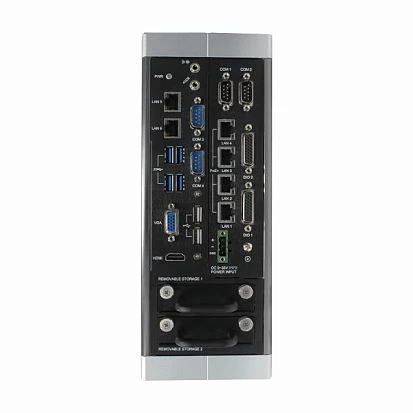

4xDB9, DB15 VGA, HDMI, 6xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC input (terminal block), 2xDB25 Female
System Power Input
Input Voltage DC
19 V
Power Consumption
80 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 3.x, Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
272 mm
Height
112 mm
Depth
141 mm
Operating Conditions
Operating Temperature
-20..55 °C
Vibration
5~500Hz 3 Grms X,Y,Z axis w/ SSD, according to IEC 68-2-64
Shock
10G peak acceleration (11 m sec. duration), operation; 30G peak acceleration (11 m sec. duration), nonoperation; According to IEC 68-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.73 kg
Gross Weight
4.4 kg
