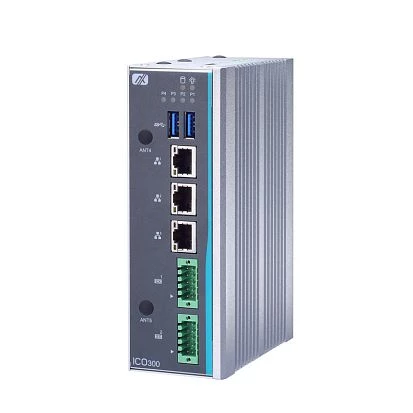

ICO300-M3940S-A
AXIOMTEK
SKU: 10136200
ATEX/CID2 Certified Din-rail Fanless Embedded System with Intel Intel Atom Processor x5-E3940 1.6-1.8GHz, DDR3L up to 8GB, 8Gb eMMC, 3xGbE LAN, 2xCOM, 2.5" SATA SSD/HDD bay, 2xMiniPCIe, 9-36V DC, -40..70C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom E3930
Socket
FCBGA1296
CPU Support Type
Atom
Max CPU frequency
1.8 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Graphic Memory Size
2 GB
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
16
Digital Input
Isolation DIO
Yes
Drive interfaces
SATA 3
1
mSATA
1
CompactFlash Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
8 GB
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors
HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block), DIO (terminal block), 2xCOM (terminal block), 4xSMA, 4xCOM (terminal block)
System Power Input
Input Voltage DC
9 V
Power Consumption
36 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
63 mm
Height
155 mm
Depth
110 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
10-95%
Vibration
5G, 10 - 150 Hz, amplitude 0.35 mm
Shock
Operating, 25G, half-sine, duration 11 ms
Standards and Certifications
Certifications
CE
EMI
FCC Part 18
Explosion safety
ATEX Zone 2 Group II, UL/cUL Class I Division 2
Rolling Stock
EN 50121-4
Safety
UL 60950-1
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
