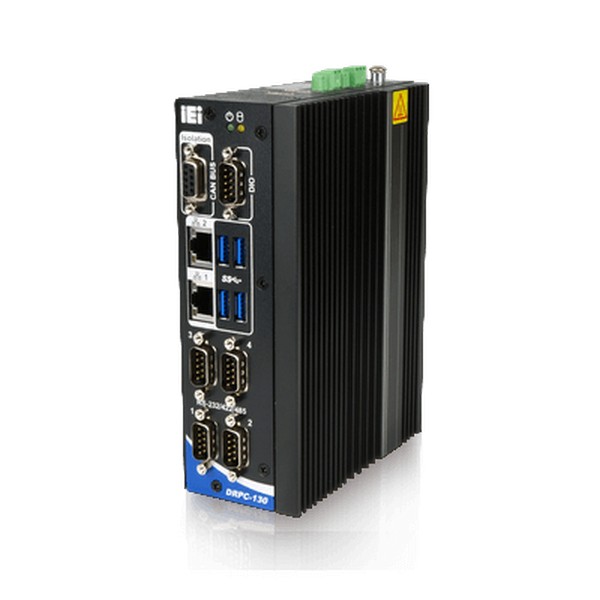

DRPC-130-AL-E1/4GB
IEI
SKU: 08270800
Fanless DIN-Rail Computer, Intel Atom x5-E3930 1.8 GHz, 4GB DDR3L, 2xHDMI, 2xGbit LAN, 4xRS232/RS422/485, 4xUSB 3.0, DB9 CAN Bus (2-ports, 2.5kV isolation), 4xDI/4xDO, mSATA, power 12..24 V DC
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
Intel Atom x5-E3930
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Industrial Interfaces
CAN Port
2
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
5xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), 2xDB9 CAN
System Power Input
Input Voltage DC
12..24 V
Power Consumption
35 W
Dimensions and weight
Width
58.75 mm
Height
130 mm
Depth
174 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.78 kg
