DRPC-130-AL-E1

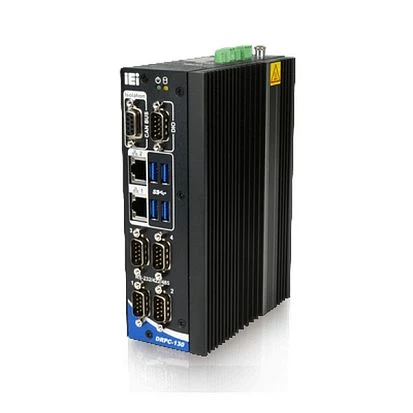

DRPC-130-AL-E1-R11 DIN Rail Embedded System uses Intel Atom x5-E3930, up to 8GB DDR3L RAM, internal SATA Drive Bay, 2xCAN Bus The compact format and DIN Rail Embedded System mounting capability allow the DRPC-130-AL-E1-R11 to deliver high performance and the combination of multiple embedded devices in a minimum of space. For excellent low-heat efficiency, the DRPC-130-AL-E1-R11 uses an Intel Atom x5-E3930 SoC processor with a low energy DDR3 RAM fanless design. The Intel Atom x5-E3930 of the DRPC-130-AL-E1-R11 is a dual core processor with an Intel Enhanced SpeedStep controlled clock frequency of 1.30 GHz as the basis and 1.80 GHz under full load in Turbo Boost mode. For fast data transfer, the DRPC-130-AL-E1-R11 provides a 4 GB DDR3L RAM, which can be replaced by data-intensive arithmetic operations with a SO-DIMM module with up to 8 GB. The DRPC-130-AL-E1-R11 offers three standards that can be used individually or in parallel: a 2.5" Drive Bay, an internal eMMC Flash memory with a maximum capacity of 32 GB and mSATA SSD modules. The last option in the DIN rail embedded system DRPC-130-AL-E1-R11 occupies a full-size expansion slot in Mini PCI Express. For individual expansion, the DRPC-130-AL-E1-R11 in this case offers another socket for the Half Size Mini Card. The DRPC-130-AL-E1-R11 Embedded Gateway concentrates its I / O on the top and front of the chassis for easy and clear installation and routing of cables within control cabinets through a DIN rail mounting kit. All interfaces for the I/O except for graphic outputs through double HDMI are clearly arranged on the narrow front side of the DRPC-130-AL-E1-R11. They include four serial COM ports in RS232/422/485, four USB 3.0 ports, the DRPC-130-AL-E1-R11 network connection via dual Gigabit Ethernet LAN and Male and Female DB9 for dual CAN bus 2.0 or one digital I/O with 8 bits. Optional features of the DRPC-130-AL-E1-R11 include wireless integration into networks over WLAN 802.11 a/b/g/n or WWAN via internal SIM card. The DRPC-130-AL-E1-R11 is designed for long-term trouble-free and maintenance-free operation in a fanless, rugged design that is certified to military standard MIL-STD-810G. The primary application areas of the DRPC-130-AL-E1-R11 include IoT applications, IT infrastructure such as in telecommunications or supply networks, M2M and SCADA in factory machines and small systems up to mobile application as in-vehicle PC.
