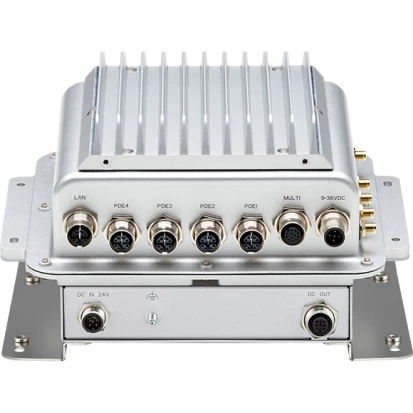

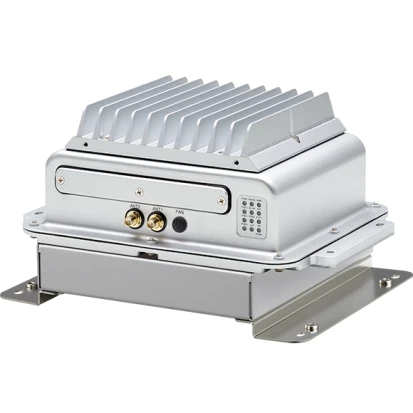

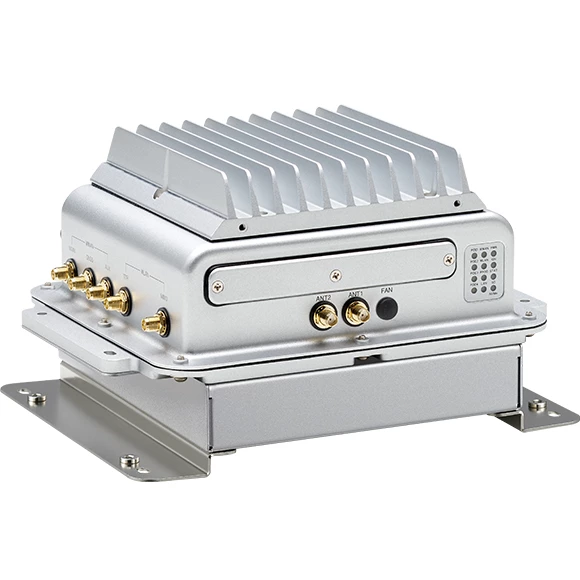

ATC-3560-IP7-NXAI4CR-16
NEXCOM
SKU: 80224200
Fanless Edge AI System, IP67 Full, Nvidia Jetson Orin NX 8-Core SoM, Ampere 1024-Core GPU, 16GB LPDDR5 RAM, 128GB NVMe SSD, HDMI, 1xGbE M12 LAN, 4xPoE M12 LAN, 2xUSB 3.2, 1xOTG, 1xM12 Multi (2xCOM, 1xCAN), 1xMiniPCIe, 1xM.2 Key-B, GPS, 24VDC-in Rail
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP67
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (8-Core)
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
1
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2, Micro-SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED, PoE+ LED, WLAN LED, LAN LED, SSD LED
Controls
1xReset
Connectors
Connectors
HDMI, 2xUSB, 1xMicro USB, 2xSIM Card Slot, M12 DC-in, 4xM12 PoE, M12 LAN, M12 A-code Multi-port
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu 22.04
Operating System Installed
NVIDIA Jetpack 6.2
Dimensions and weight
Width
213 mm
Height
104 mm
Depth
167 mm
Operating Conditions
Operating Temperature
-20..65 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Rolling Stock
EN 50155
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
3.2 kg
Gross Weight
3.8 kg
