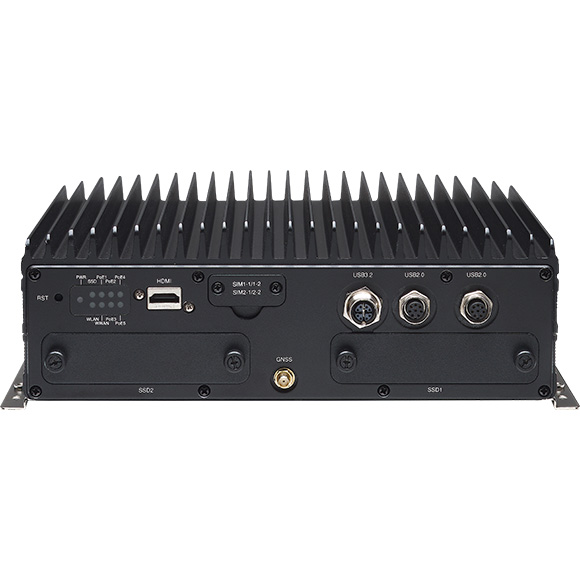

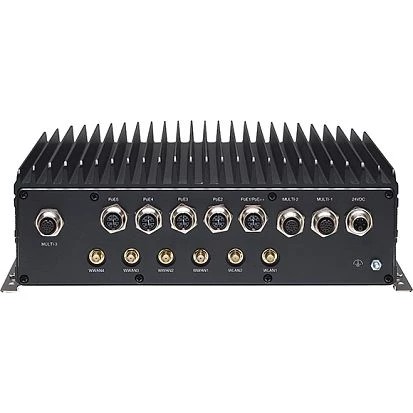

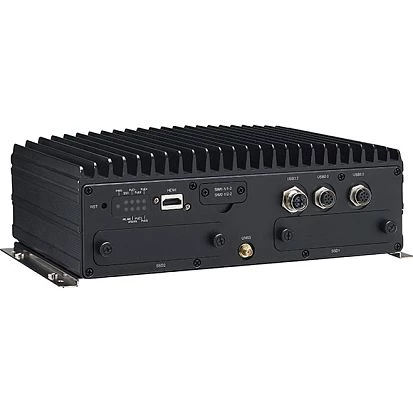

nROK-7280-5AC5IP
NEXCOM
SKU: 80072500
Fanless Railway PC, IP67, Intel Core Ultra 5 125H CPU, Up to 64GB DDR5 RAM, HDMI, 8xM12 (5x2.5GbE PoE LAN, 1xUSB 3.2, 4xUSB 2.0), 3xMultiport for 4xCOM/2xCAN/DIO/Audio, GPS, 2x2.5" Bay, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 2xMiniPCIe, 9-36/24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP67
Type
Fanless
CPU
СPU Generation/Family
Meteor Lake
Processor Installed
Intel Core Ultra 5 125H
Socket
FCBGA2049
Max CPU frequency
4.5 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
5
PoE+ 10/100/1000 Mbit/s
5
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
2
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 4, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED, PoE LED, WLAN LED, WWAN LED, SSD LED
Controls
1xReset
Connectors
Internal Ports
16-pin VGA
Connectors
HDMI, M12 DC-in, 2xM12 A-code USB, 1xM12 X-code USB, 5xM12 PoE, 3xM12 A-code Multi-port
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
93.8 mm
Depth
182 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Rolling Stock
EN 50155, EN 45545-2
Vehicle
E-Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
6.2 kg
Gross Weight
7.2 kg
